Scattering phenomena affect light propagation through any kind of medium from free space to biological tissues. Finding appropriate strategies to increase the robustness to scattering is the common requirement in developing both communication protocols and imaging systems. Recently, structured light has attracted attention due to its seeming scattering resistance in terms of transmissivity and spatial behavior. Moreover, correlation between optical polarization and orbital angular momentum (OAM), which characterizes the so-called vector vortex beam (VVB) states, seems to allow for the preservation of the polarization pattern. We extend the analysis by investigating both the spatial features and the polarization structure of vectorial optical vortexes propagating in scattering media with different concentrations. Among the observed features, we find a sudden swift decrease in contrast ratio for Gaussian, OAM, and VVB modes for concentrations of the adopted scattering media exceeding 0.09%. Our analysis provides a more general and complete study on the propagation of structured light in dispersive and scattering media.
The study of structured light is an important field of investigation in both the quantum and classical regimes.1,2 In particular, light carrying orbital angular momentum (OAM) different from zero has been used in many applications ranging from quantum simulation3,4 and quantum engineering5,6 to quantum and classical communications.7–14 Recently, OAM modes have been particularly studied for their uses in biomedical applications of imaging and diagnosis.15–17 In particular, they have been exploited for the development of noninvasive diagnostics on tissues. In this regard, studies comparing the transmittance to the Gaussian spatial mode on scattering media simulating real tissue properties have been carried out.18–20 In this context, it becomes of fundamental importance to investigate how the structure of OAM modes can be degraded by scattering and turbulent media. In particular, this has been investigated in communications through scattering media,21 atmospheric turbulence,22–24 and underwater.25,26
Increasing the complexity of the beam profile can lead to improved performances in turbulent media.27–32 This can be achieved with vector vortex beams (VVBs), which are structured beam profiles in which the helicoidal wavefront is coupled with a nonuniform distribution of the polarization on the transverse plane. The coupling between these two degrees of freedom makes VVBs a suitable choice for several applications in the classical regime, such as microscopy,33,34 optical tweezers,35,36 energy-efficient metal-cutting lasers,37 and classical communication.38,39 Moreover, they find further application in the quantum regime for sensing and metrology,40,41 quantum simulation,3,4 and quantum communication.7–9
VVBs present a polarization pattern that also has to be addressed. Experiments investigating polarization preservation through scattering media of a VVB obtained by superposition of opposite OAM () modes have shown an enhancement by a factor of 2 compared with that of a Gaussian beam.42 Furthermore, by analyzing the transmissivity behavior for circularly polarized Laguerre–Gauss (LG) modes and azimuthal or radial polarization patterns in VVB modes, a highest transmission for the radially polarized VVB was observed.43 These considerations make VVBs a good candidate for improving the transmission in scattering media, towards the realization of in vivo diagnostic devices.
To employ VVB in realistic diagnostic devices, however, another fundamental aspect that requires investigation is the preservation of the mode spatial features after interaction with the scattering media. This has been studied with scalar fields carrying a topological charge and a uniform polarization profile, which have been shown, at moderate scattering lengths, to exhibit only a slight effect on the beam distortion.44
Here, we report on a similar analysis on VVB, further extending the scattering region. We study the spatial behavior of different VVBs and OAM modes going through scattering media composed of solutions of polystyrene latex beads with different concentrations. Our results provide indication of an abrupt spatial mode degeneration. Moreover, we extend the analysis presented in Ref. 42, by investigating the depolarization ratio (DR) of VVBs obtained from superposition of OAM modes with different values, comparing it with that of a Gaussian mode.
Our experimental apparatus to investigate the scattering properties of dispersive media with structured light envisages three different stages. The first is designed for generating structured light as scalar optical vortexes carrying a defined amount of OAM and VVBs. Then, we have the samples and the detection stages to collect the scattered light and analyze its properties.
The OAM degree of freedom is associated with a helicoidal structured wavefront.45,46 The state of a photon with nonzero OAM is described by LG modes. These modes are characterized by two parameters : the first is the azimuthal parameter associated with the OAM value and the latter is the radial parameter associated with the radial intensity distribution. To generate OAM modes, we adopt the system used in Ref. 6, described in Fig. 1, which makes use of five -plates47,48 combined with half-waveplates (HWPs) to obtain OAM modes going from to 5. Indeed -plates are inhomogeneous birefringent media in which the orientation of the optical axis is not uniform in the slab’s plane. The resulting pattern is periodical around a singularity in the origin of the plane, with a winding number expressed by the topological charge . Consequently, such plates impress different phase retardation to the wavefront according to the coordinates in the transverse plane and conditionally to the polarization states, generating optical vortexes with charges equal to . More precisely, the action of a single -plate on a circular polarized vortex, with a topological charge equal to , can be summarized as follows:
The device generates vectorial fields when, for instance, the incident beam is linearly polarized. In this case, the output field is a VVB that is the superposition of two optical vortexes with opposite charges and orthogonal polarization.48 This scheme can be generalized using cascaded -plates and waveplates for generating VVBs in the form49 The flexibility of this apparatus allows for the investigation of the response of our sample under the illumination of different structured beams. In our implementation, we aim at generating balanced VVBs (). However, some discrepancies will arise due to misalignment in the setup; will be equal to 0 or depending on the generated mode.

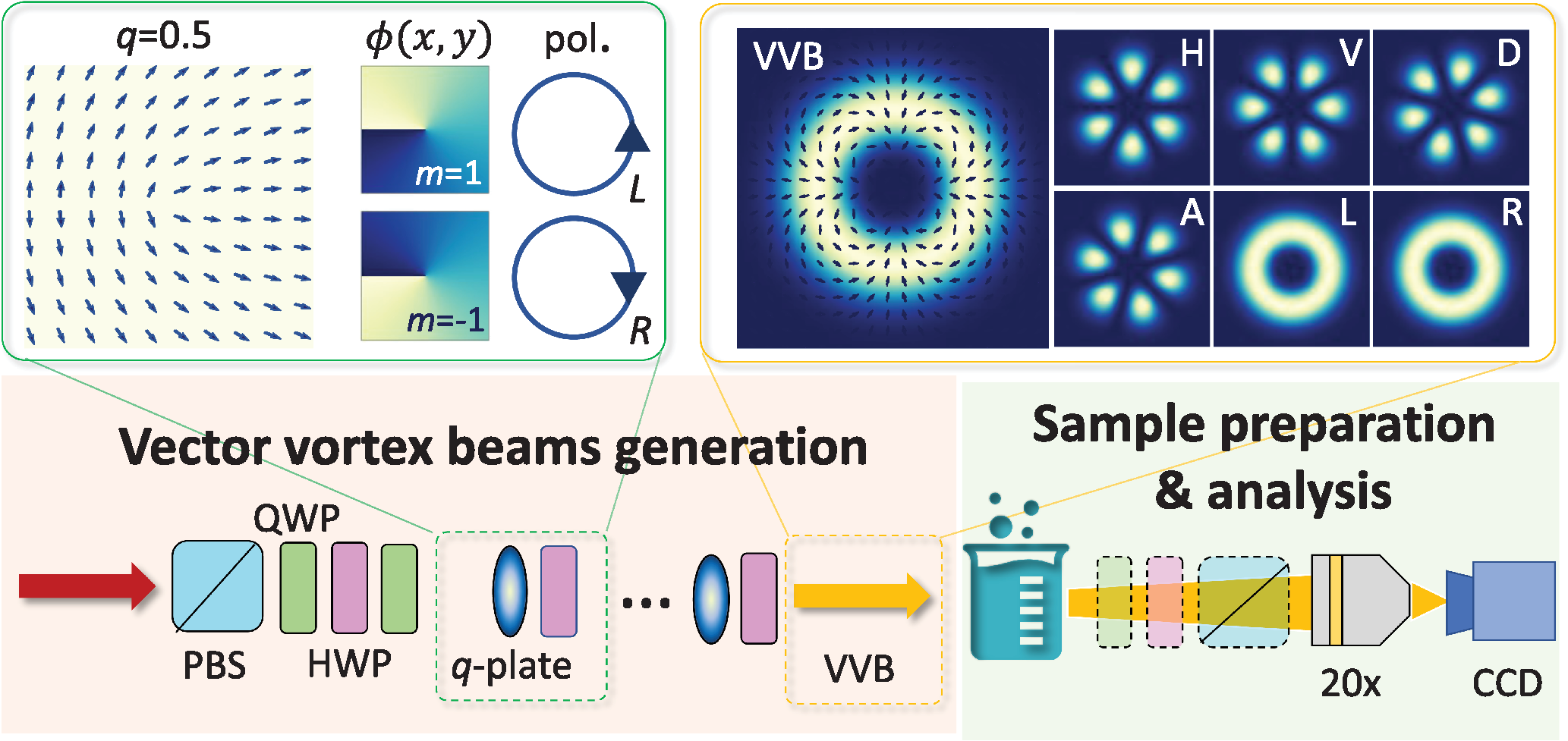

To generate such states, we employ a continuous wave (CW) laser (CNI laser PSU-III-FDA) at 808 nm opportunely shaped by the apparatus shown in Fig. 1, which is then sent through the sample. The scattering medium is a solution of polystyrene latex beads (Sigma-Aldrich) with diameter in distilled water with varying concentrations from 0.05% to 0.12%. The choice of such a scattering medium is motivated by the possibility of accessing different scattering regimes via its concentration. Furthermore, our analysis is intended to thoroughly extend previous studies performed with the same scattering system.18,19,42 The sample is placed in a Hellma quartz cuvette with a fixed path length . The concentrations are reported in Table 1 together with the scattering length, as well as the scattering and the attenuation coefficients.
Scattering properties of latex beads. The relevant parameters of our scattering samples are reported, namely the scattering length ls, transmission length ltr, scattering coefficient μs, the inverse of transmission length μs′, the scattering anisotropic coefficient g, and the quantity μsL, where L=1 cm is the sample length. Those parameters are determined to provide a complete picture of the scattering conditions corresponding to the performed experimental tests. The values were retrieved for different concentrations C of latex beads. The calculations were obtained using the program available in Ref. 50.
The last part of our apparatus consists of the collection and analysis of the scattered light. A CCD camera (Thorlabs BC106N-VIS/M) records the images in the far field after a objective. A polarization analysis stage, made by a quarter-waveplate (QWP) and HWP followed by a polarizing beamsplitter (PBS) cube, is eventually placed before the objective.
In this work, we address both the spatial and polarization properties of the vector beams after propagation in the scattering medium. To perform the spatial analysis, we select the central slice of the mode, averaged over 50 acquisitions, and we compute the contrast ratio given as
Conversely, the polarization analysis is performed by estimating the DR for the VVBs and for the Gaussian mode. To this aim, measurements on a polarization basis resolved in the coordinates of the transverse plane allow for the retrieval of the set of Stokes parameters:
This means that every fully polarized light will have regardless of the polarization direction, whereas the DR will decrease to 0 for unpolarized light.
In the following, we report the results of our analysis regarding the scattering effects on the spatial and polarization properties of VVBs.

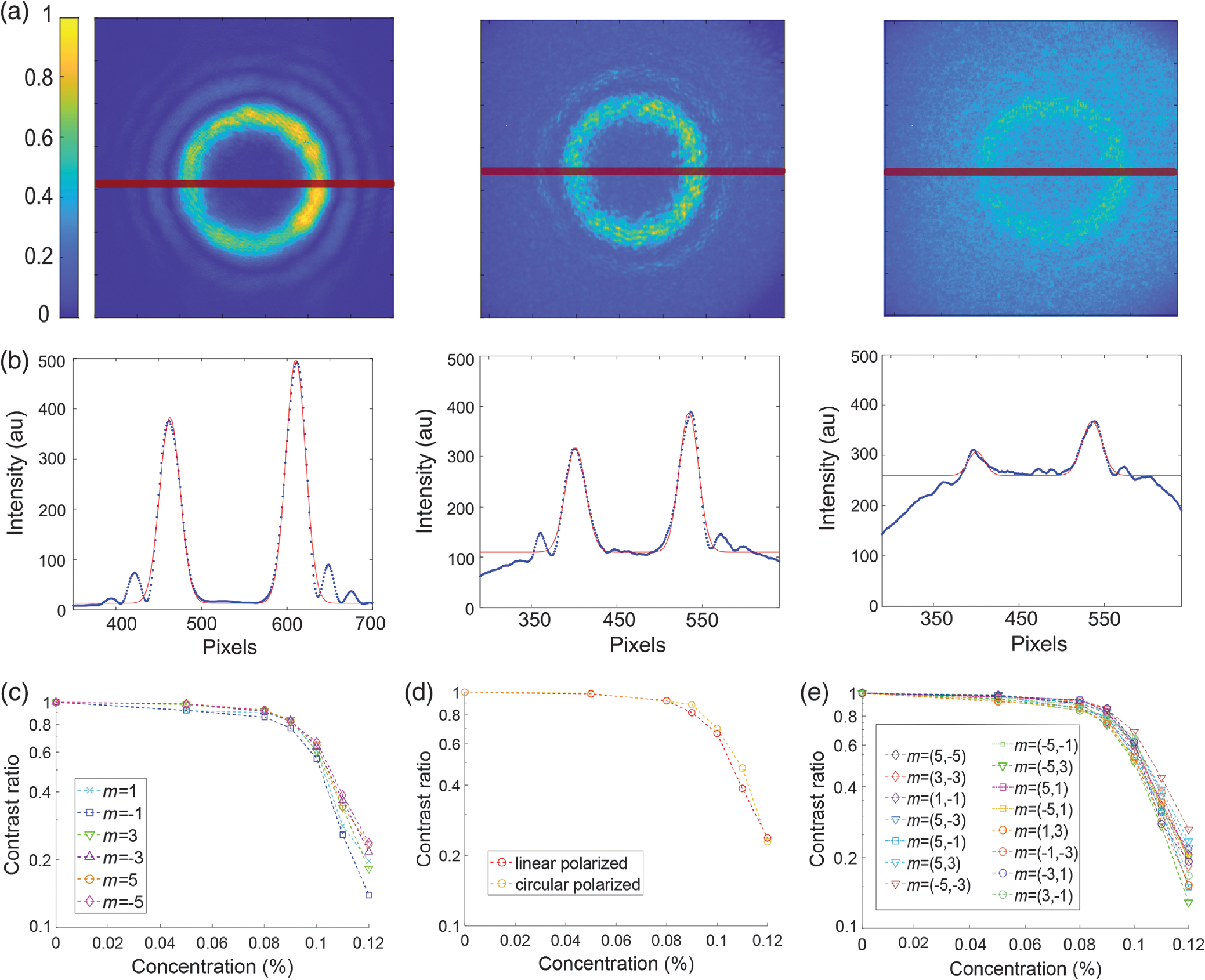

The first study reports the behavior of the contrast introduced in the previous section, for different concentrations of latex beads in the water solution. This analysis was carried out to investigate the spatial resolution after diffusion in the medium. Instead of two separate light sources, we directly address two different, separate parts of the same mode. To do so, we use the two intensity peaks along the axis in the image plane to retrieve as a quantifier of the resolution power. In Fig. 2, we report some pictures of the peaks profile after the sample along with the trend of for the OAM mode with at , 0.10%, 0.12%. Similar analysis was carried out for all circularly polarized OAMs and VVBs considered and for both linearly and circularly polarized Gaussian modes. In the peaks profile analysis, we observe two contributions in the images. The first one resembles the vortex structure in which we observe an attenuation of the signal. However, this is not associated with a broadening of the spatial components. Indeed this contribution is due to the photons that have not been scattered multiple times by the material. As such, for this component we do not observe a significant deterioration of the spatial correlation of the original VVB. We observe that there is a slight asymmetry in the peaks’ intensity, which is due to the alignment of the cascaded -plates. The second contribution is the background given by the scattered photons that have lost the spatial information. The same investigation was performed for increasing values of concentration of scattered centers in the liquid solution. We observe that, since there is no broadening of the spatial features, the only effect here is that of a reduced intensity of the transmitted beam: all modes seem to be affected equally by this behavior.

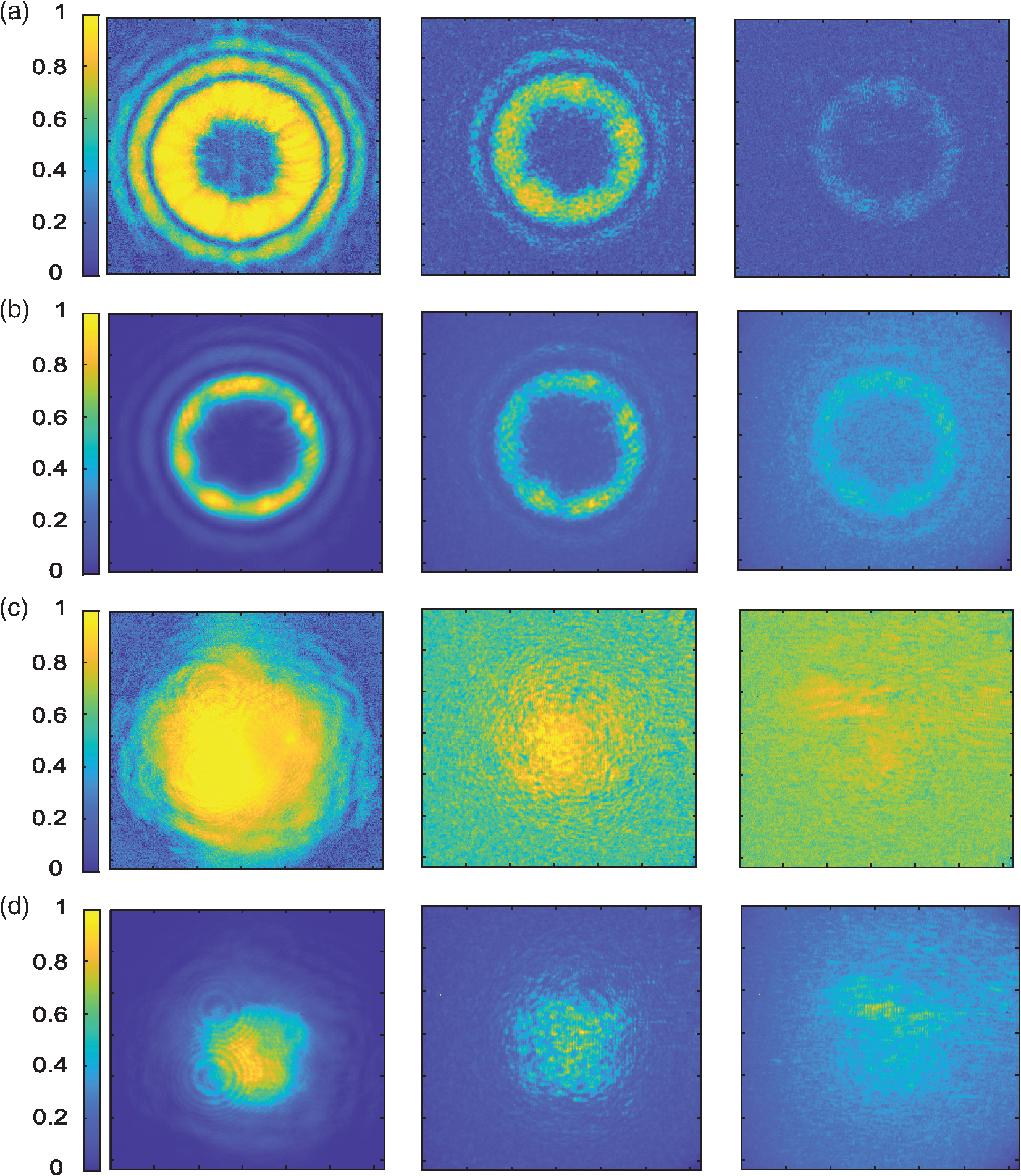

We performed the analysis for different concentrations, ranging from very small values to the point where we could not detect any residual transmitted mode on the camera. This happened for concentrations higher than 0.12%. In Figs. 2(c)–2(e), we report the behaviors for all analyzed modes. We observe that the contrast has a plateau up to and then it abruptly decreases.
The second investigated aspect concerns preservation of the light polarization features. This point is crucial in the presence of VVBs, which have a particular property of displaying well-defined polarization patterns. To measure the DR, we illuminated the sample with different VVBs states and performed the polarization measurements discussed in the previous section. Figure 3 shows the pixel-by-pixel DR for the circularly polarized Gaussian mode and for the VVB given by the superposition of and as an example. From this, we observe that the component related to the scattering is strongly depolarized for the VVBs, whereas it maintains the original circular polarization for the Gaussian mode. The unperturbed component instead maintains a high degree of polarization in both instances (the slight decrease in the VVB is to be attributed to the scattering background overlapped to the unperturbed signal). The same results were obtained for all of the VVBs considered and for the linearly polarized Gaussian mode, respectively. A possible interpretation of this result is that, while the Gaussian polarization pattern is flat, the VVBs one is highly structured. Hence, as the light is scattered, in the same propagation direction , it might occur that different polarizations are incoherently superimposed, resulting in a low value of DR. This cannot happen with the Gaussian profile since there is no spatial dependence on the polarization to begin with.

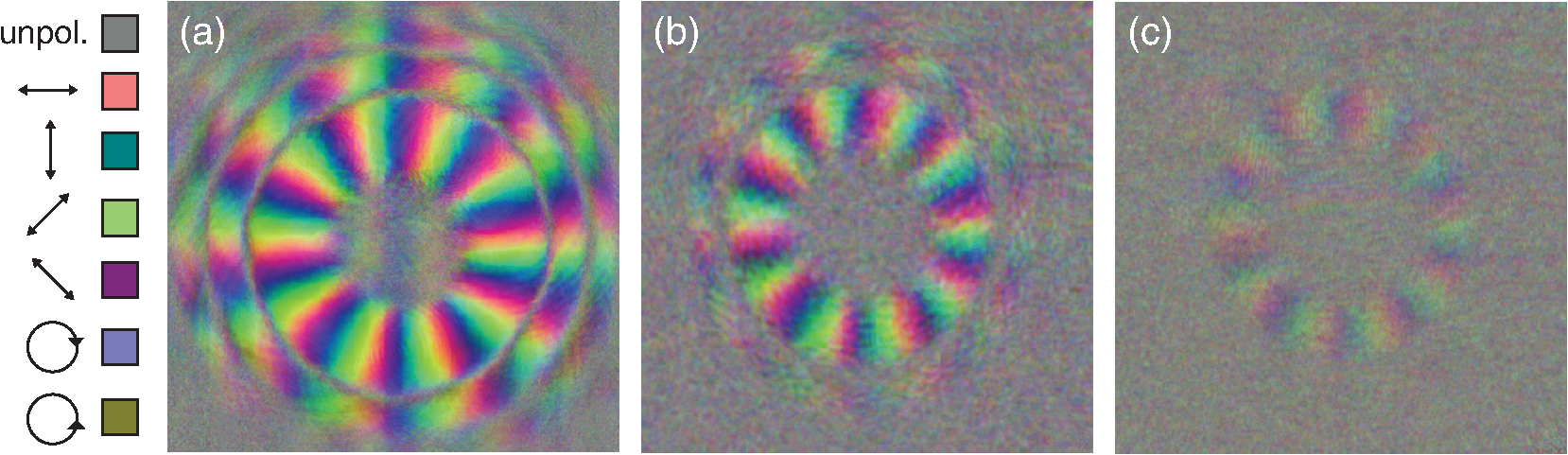

To study the behavior of the polarization pattern, we also address individually the Stokes parameters. We associate an RGB map with the three Stokes parameters to visualize the polarization pattern in a single image. This is shown in Fig. 4 for the same concentrations chosen for the DR of the VVB given by the superposition of and , as before. The pattern is clearly defined for the nonscattered mode, and it is retained up to the highest concentration for the portion of beam that is also spatially unaffected by the scattering. Conversely, all of the scattered light is completely mixed, and the polarization correlations are lost.
In this paper, we investigated the propagation of structured light through dispersive media. More specifically, we performed a thorough analysis on how the optical properties of complex spatial profiles are affected by the scattering process in a turbulent environment. This was realized by means of micrometric latex beads in a water solution at different concentrations. We focused our analysis on two specific tasks, namely the study of spatial contrast degradation and depolarization of the input beam. To this end, with a flexible apparatus, we generated different input modes, ranging from OAM valued beams to VVBs carrying correlation between polarization and spatial profile.
Concerning the investigation on the contrast degradation in the spatial profile, we observe that OAM carrying beams are characterized by an abrupt change in the resolution. In particular, spatial profiles are maintained up to a certain threshold concentration of , analogously to that observed in former papers.44 Conversely, a fast contrast degradation is observed for higher concentrations. Furthermore, the behavior and the threshold are shown to be almost independent of the OAM values in the investigated regime. However, we observe from Fig. 2 that a slight difference in contrast ratio for OAM values is present. Additional studies are needed to clarify this phenomenon. Therefore, investigation of this aspect could be done both for higher concentrations and for a far greater range of OAM values. The same results are obtained for VVBs and for Gaussian inputs. Moreover, we observe that the spatial profile of the unscattered light preserves the original intensity distribution.
The second analysis focused on verifying the polarization degradation of the input beams. This investigation is particularly relevant for VVB states due to their correlated and complex spatial-polarization profiles. A study of the same effect has been performed in Ref. 42, for two order of magnitude shorter sample thicknesses and with a single VVB with . For the concentrations and the investigated sample length, we observe two different behaviors for Gaussian inputs and VVBs. More specifically, the former states present a uniform polarization profile that is unaffected by the scattering process. An entirely different behavior is observed for VVBs. Indeed, for this class of states, we find that the light portion that has undergone multiple scattering is completely unpolarized, while the coherent part that has not interacted with the medium maintains its polarization pattern. These results provide the first comprehensive analysis covering different concentrations and mode profiles, in both the spatial and polarization degrees of freedom, and can help in establishing a framework for application of structured light illumination in imaging and communications protocols. Furthermore, these results stimulate further research on the behavior of structured light undergoing scattering processes, including investigating the effect on different media mimicking tissue-like features.
This project received funding from the European Union’s Horizon 2020 research and innovation program (Future and Emerging Technologies) under Grant Agreement No. 828978.
