12 November 2020 Metalens-integrated compact imaging devices for wide-field microscopy
Author Affiliations +
Abstract

Metasurfaces have demonstrated unprecedented capabilities in manipulating light with ultrathin and flat architectures. Although great progress has been made in the metasurface designs and function demonstrations, most metalenses still only work as a substitution of conventional lenses in optical settings, whose integration advantage is rarely manifested. We propose a highly integrated imaging device with silicon metalenses directly mounted on a complementary metal oxide semiconductor image sensor, whose working distance is in hundreds of micrometers. The imaging performances including resolution, signal-to-noise ratio, and field of view (FOV) are investigated. Moreover, we develop a metalens array with polarization-multiplexed dual-phase design for a wide-field microscopic imaging. This approach remarkably expands the FOV without reducing the resolution, which promises a non-limited space-bandwidth product imaging for wide-field microscopy. As a result, we demonstrate a centimeter-scale prototype for microscopic imaging, showing uniqueness of meta-design for compact integration.

1.

Introduction

Current imaging technology has been well developed by versatile strategies for outstanding performances in high resolution, high image quality, and broad wavelength band. Most of these techniques are established on the basis of mature refractive or reflective optical elements, such as lenses, internal reflection mirrors, etc., which result in optical systems that are bulky, heavy, and inconvenient for portability. However, more compact, light, and stable optical systems are the ever-growing requirement of modern applications. Recent advances in computational imaging (including the lensless and scattering medium imaging) have shown a successful route to reduce the complexity of the optical system by discarding the refractive lenses.1,2 Nevertheless, they are not a real physical image, and the image quality strongly relies on the post-processing algorithms, such as iterative phase recovery algorithm,3,4 compressive sensing,5,6 and Fourier ptychography.7,8 It inevitably requires computational resources that are time consuming and sometimes needs particular prior knowledge for imaging reconstruction.

Benefiting from the development of nanofabrication technology, the metasurface as a new breakthrough of optical design has demonstrated tremendous capabilities in manipulating light by subwavelength unit cells,912 and fascinating applications with the low loss dielectric metasurfaces have been revealed.1316 Among these applications, the metalens is one of the most promising candidates for upgrading current optical systems. During the past several years, exciting progress concerning the imaging performance of the metalens has been made, including improved efficiency,17,18 broadband achromaticism,1921 broadened field-of-view (FOV),22,23 polarization functionalities,24,25 etc., which indicates a closer step toward real applications. As we revisit metasurface design besides those achievements, the ultrathin, ultralight, and flat architecture features as the core advantage of this newly developing optical design. However, only a few works focus on compact integration,26,27 and there is a lack of systematic characterization of imaging performance. In most previous works, metalenses act only as substitutes for conventional refractive lenses and play almost the same role in conventional optical settings without showing their uniqueness for integration.21,2830

In this work, we directly integrate the metalenses onto the complementary metal oxide semiconductor (CMOS) image sensor to show the major advantage of the flat metalens. The metalenses were manufactured in amorphous silicon (α-Si) nano-posts designed by the geometric Pancharatnam–Berry (PB) phase on a SiO2 substrate, where the Si material was used for potential compatibility to full CMOS-based devices. After careful characterization of the imaging qualities with respect to the resolution, signal-to-noise ratio (SNR), FOV, and so on, we show the capability of this metalens-integrated imaging device (MIID) for spectral focal tuning31 due to the large dispersion. It breaks the limitation of lens-free shadow imaging that cannot resolve the depth-of-field (DOF) of the object.32 More importantly, we develop a metalens array to cover a wide area of CMOS image sensors for a wide-field imaging. To eliminate the blind areas in multiple-images-stitching, here, we utilize a polarization-multiplexed dual-phase (PMDP) design (with respect to two circular polarizations) to access two sets of lenses with complementary image areas. A full stitched wide-field image is completed only by switching the polarization without any mechanical movement. As a result, we achieved high-resolution images (1.74  μm almost limited by image sensor pixel) with a millimeter-scale image area (expandable to whole centimeter-scale CMOS sensor), which was ultimately implemented in a 3-cm size device prototype. This ultra-compact microscope system promises more exciting applications of metalens in high resolution, large FOV, and tunable DOF imaging.

2.

Device Architecture and Fabrication

Figure 1(a) shows the schematics of imaging setup for our MIID. An optically clear adhesive (OCA) tape (Tesa, 69402) is used to transfer and fix the metalens on the CMOS image sensor (Imaging source, DMM 27UJ003-ML, pixel size: 1.67  μm×1.67  μm) with proper thickness for imaging distance v (the distance between the CMOS image sensor and metalens) in our experiment. Here, the OCA is employed for its colorless transparency with high transmittance (>90%) in the visible and near-infrared ranges, which is widely used in optoelectronic devices. We also take OCA tape as the spacer medium of integration for the well-defined stationary thickness. The detailed metalens integration process is further described in Sec. S1 of the Supplementary Material. With skillful operation, the integration deviation is very small, and the distortion caused by lens tilting can be handled. Once the metalens is mounted on the CMOS image sensor, the imaging distance is fixed, and a clear image can be acquired by tuning the object distance u (the distance between metalens and object) with the translation stage. Figure 1(b) shows the photograph of the highly compact MIID (here, v=500  μm). It should be noted that, due to the complex medium layers in both image space and object space of the metalens, the parameters (u,v) here are effective ones containing the influence of the medium. We first measured the effective imaging distance and take it as constant in our theoretical design. A white-light source of a halogen lamp with color filters was employed for incoherent monochromatic illumination. The metalens is designed as an aplanatic lens to eliminate on-axis aberrations for the 4f imaging scheme (u=v=2f) with a phase profile of31

Eq. (1)

φ=4πλ(2fR2+4f2),
where λ is the designed working wavelength, f is the focal length, and R is the radial coordinate. This required phase profile is imparted via the geometric phase (i.e., PB phase), which is widely used in metasurface design.31,33,34 Here, we choose α-Si as our metalens material for its high refractive index (4.06), relatively low loss at long wavelengths in the visible (λ>600  nm), and particularly its compatibility to the CMOS platform. A 200-μm-diameter metalens composed of nano-posts is fabricated in an 850-nm-thick α-Si film deposited on a 200-μm-thick fused silica substrate. The metalens is designed to work at a wavelength of 630 nm with NA0.37 (diameter D=200  μm, f=250  μm). To avoid high-order diffractions, the rectangular nano-post units are designed with sizes of 80  nm×200  nm in a height of 850 nm (equal to thickness of deposited Si film) and arranged in a square lattice with period of 400 nm. The simulated polarization conversion rate (PCR) is as high as 97.78% for the unit structure to guarantee high efficiency. The PCR is defined as |tcross|2/(|tcross|2+|tco|2), where tcross and tco represent the complex transmission coefficients of cross-polarized and co-polarized light, respectively. The metalens is fabricated using standard electron-beam lithography and dry etching. The detailed fabrication process is described in Sec. S1 of the Supplementary Material. The optical microscope image and scanning electron microscope (SEM) image of the metalens are shown in Fig. 1(c), respectively.

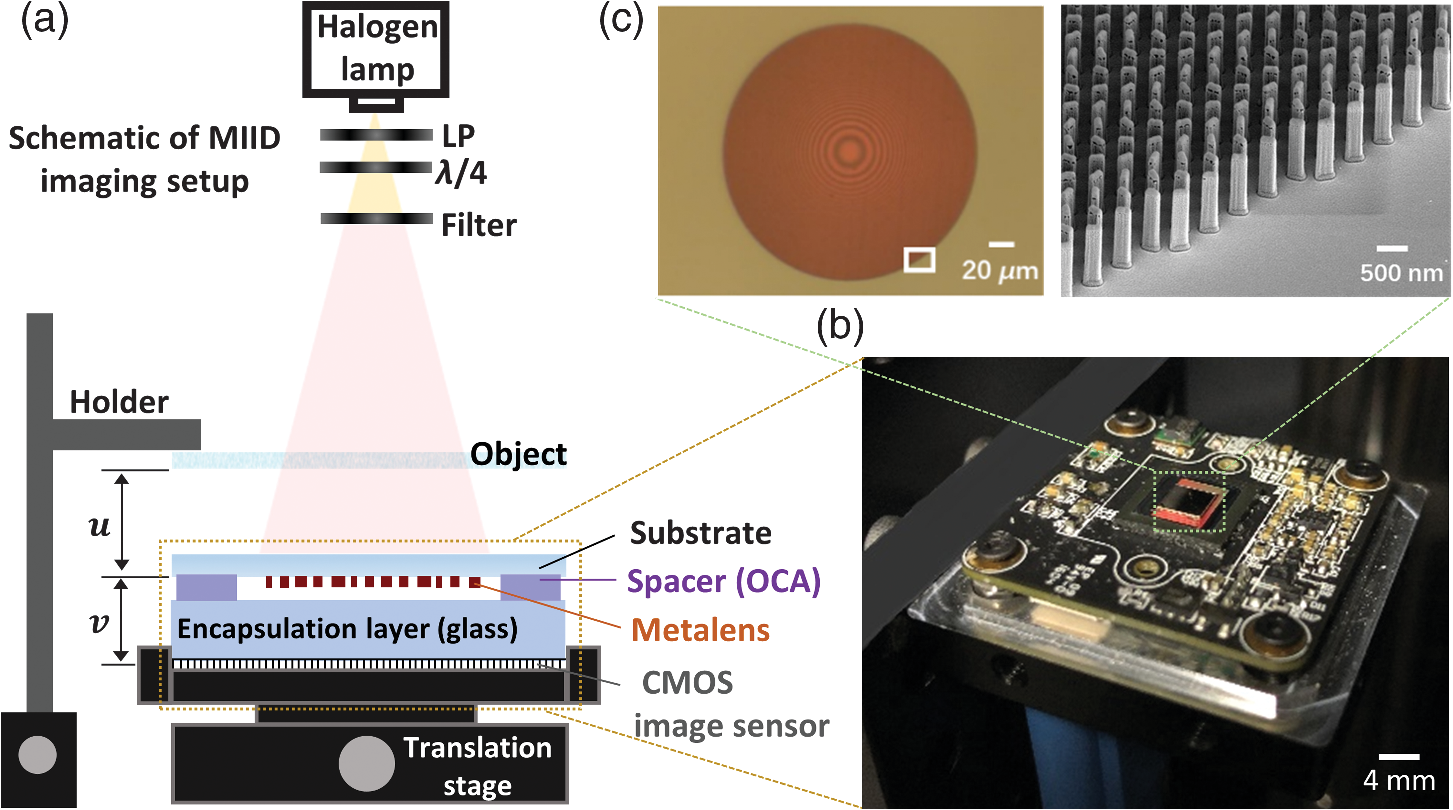

Fig. 1

Device architecture and metalens fabrication. (a) Schematic of the optical setup for MIID. (b) Photograph of the highly compact MIID. (c) Top-view optical microscope image and side-view SEM image of the fabricated α-Si metalens with a diameter of 200  μm.


3.

Characterization of the Single Metalens Imaging

The 1951 United States Air Force (USAF) resolution test chart (Edmund, Positive 1951 USAF Hi-Resolution Target) is used as the imaging target. Figure 2(a) shows the image formed by MIID with a metalens of NA=0.37 at imaging distance of 2f with operating wavelength at 630 nm, revealing resolution of 1.74  μm (element 2, group 8), as shown in Fig. 2(c). The resolution of MIID is limited by the pixel size of the CMOS image sensor (1.67  μm) without image magnification. Figure 2(b) shows the image obtained with metalens of NA=0.45 (D=200  μm, f=200  μm) at imaging distance v=500  μm with operating wavelength of 630 nm. The resolution is 1.23  μm (element 5, group 8), as shown in Fig. 2(d), with image magnification of about 1.5. By careful observation, in Figs. 2(c) and 2(d) we find that the contrast of gray value of vertical lines is much weaker, which makes them hardly resolvable. It is due to the inequivalent CMOS pixels in two dimensions. Strictly speaking, our device only reaches the resolution of g8e2 (1.74  μm) and g8e5 (1.23  μm) in the y-dimension in equal-size (4f) and magnification image cases, respectively.

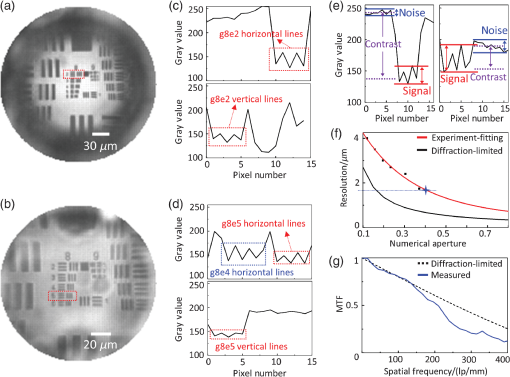

Fig. 2

Experimental characterization of a single α-Si metalens on MIID. (a) Image of 1951 USAF resolution test chart taken from MIID with the metalens of NA=0.37 at imaging distance of 2f. (b) Image of 1951 USAF resolution test chart taken from MIID with the metalens of NA=0.45 with 1.5× image magnification. (c) Intensity distribution of horizontal lines and vertical lines of element 2, group 8 in the resolution test chart taken from the red dotted box in (a). (d) Intensity distribution of horizontal lines and vertical lines of element 5, group 8 in the resolution test chart taken from the red dotted box in (b). (e) Schematic diagram of signal, noise, and image contrast. Intensity distribution of horizontal lines of element 1, group 8 in (a) (left panel) and vertical lines of element 3, group 8 in (b) (right panel). (f) Resolution of metalenses with different NAs on MIID. The red line is the fitting curve from the experiment data plotted as black points, and the blue star denotes the pixel size of the CMOS image sensor. The black line is the resolution determined by the diffraction limit. (g) The measured MTF of MIID plotted with the theoretical diffraction-limited MTF.


To get a compact imaging device, we did not add polarization analyzers between the metalens and the CMOS image sensor due to the limited space. The calculated high PCR also ensures the focus and imaging efficiency. To analyze the experimental imaging performances, we define SNR=10lg(Isignal/Inoise), where Isignal denotes the intensity of the signal that can be clearly resolved, such as element 1, group 8, and Inoise denotes the standard deviation of the background noise intensity. For instance, Fig. 2(e) depicts the imaging data of USAF elements well under the resolution to evaluate the signal and noise [see the lines of element 1, group 8 in Fig. 2(a) in the left panel and lines of element 3, group 8 in Fig. 2(b) in the right panel]. To obtain an SNR as accurate as possible, we calculate SNR from multiple sets of signals and noises [Fig. 2(e)] and compute their average value as the calculated SNR. According to our experimental data, we get the SNR of about 19.89 dB in Fig. 2(a), which decreases to 9.23 dB in the 1.5× magnification case in Fig. 2(b). Moreover, the image quality of Fig. 2(a) appears much better than Fig. 2(b) due to the sharper image signals over the background, which is usually determined by the image contrast. Here, we define it as |(IsIbg)/(Is+Ibg)|, where Is indicates the average minimum signal intensity, and Ibg indicates the average background intensity, as shown in Fig. 2(e). Then, we calculated the image contrasts for Figs. 2(a) and 2(b) with the data of 0.33 and 0.15, respectively, showing better imaging performance in contrast to the equal size image in the 4f system.

To get a systematic characterization of the imaging resolution by this MIID, a series of metalenses with different NAs on MIID were characterized at the 4f imaging scheme [see Fig. 2(f)]. The discrepancy between the measured resolution and theoretical value would possibly be due to the imperfection of metalens fabrication, the background noises, and pixel-size limited CMOS image sensor; more discussion is provided in Sec. S2 of the Supplementary Material. Moreover, the modulation transfer function (MTF) was obtained by the slanted-edge method, which shows good agreement with theoretical diffraction-limited MTF at low spatial frequency, as plotted in Fig. 2(g). The discrepancy between our measured MTF and the diffraction limit at high spatial frequency would also probably be attributed to the background noises and pixel-size-limited CMOS sensor as well.

Although the metalens mounted on CMOS image sensor leads to a fixed imaging distance, we can realize optical zoom easily by tuning the working wavelength according to the large dispersive metalens.31 Taking a designed metalens (focal length of 250  μm at λ=630  nm) as an example, we obtained the images of USAF 1951 target (part of group 6) at λ=560, 580, 600, 610, 620, and 630 nm with an imaging distance as constant at about 500  μm [see Fig. 3(a) where the area inside the blue dashed circle displays the image by MIID; more discussion in Sec. S3 of the Supplementary Material]. Due to the chromatic dispersion of the metalens, the focal length will be longer at shorter wavelengths, which results in a decreased NA and zoom-out imaging at a constant imaging distance. Inheriting the chromatic dispersion, this MIID is capable of acquiring the depth of objects without mechanical movement. To manifest this function, we fabricated two microscale samples on the top (side A) and bottom (side B) of a glass coverslip, as schematically shown in Fig. 3(b) (see imaging setup in Fig. S1 in the Supplementary Material). Here, characters “DSL” and “NJU” were fabricated on both sides of a coverslip by maskless lithography with a distance of 170  μm (i.e., coverslip thickness). The whole lateral sizes of the two objects are both 80  μm. With a certain image distance (500  μm), we illuminate the sample with light of different wavelengths. From Fig. 3(c), a clear image of NJU but a blurred DSL image is observed at λ=660  nm, and vise versa at λ=580  nm. It does demonstrate the capability of DOF tuning via switching the illumination wavelength.

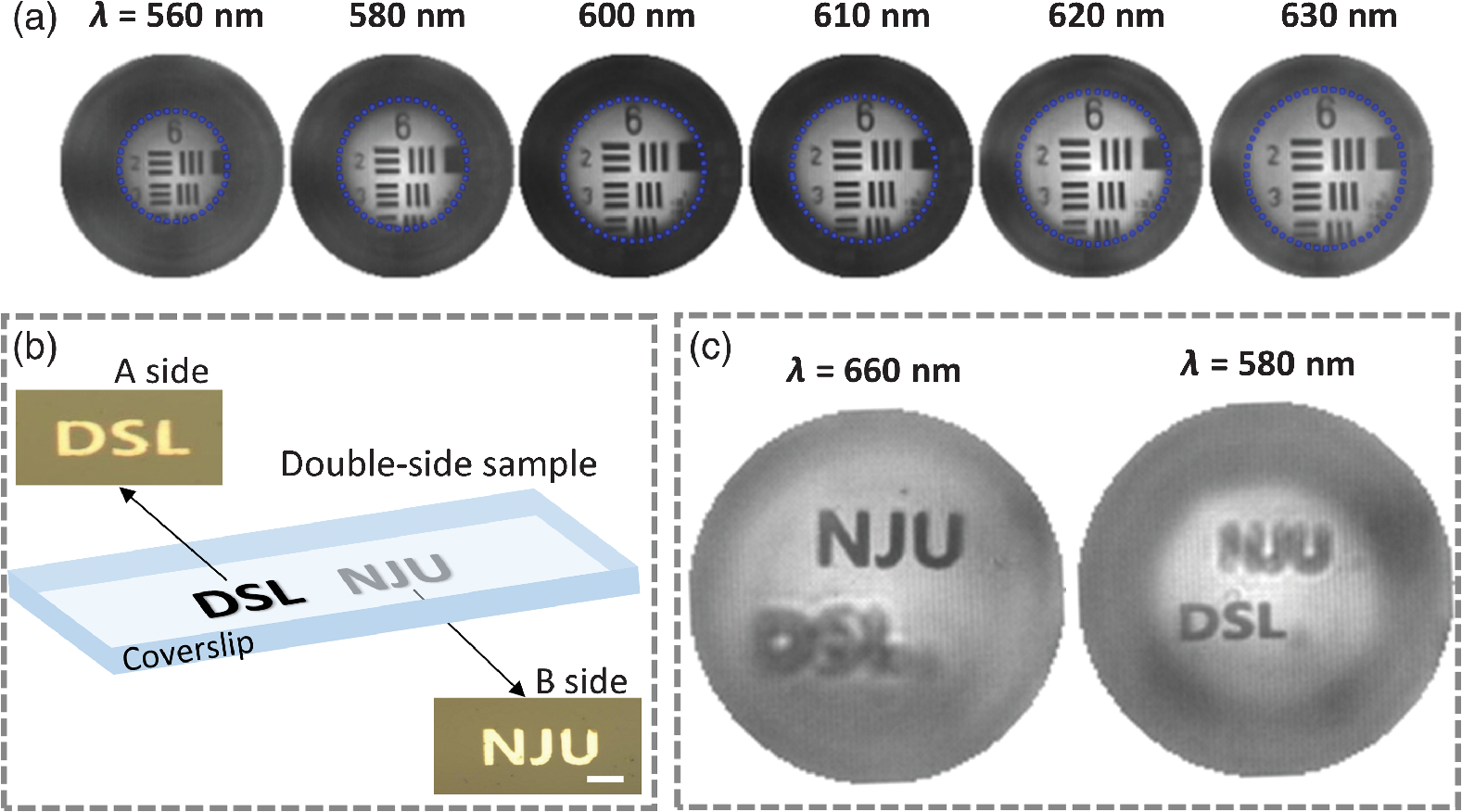

Fig. 3

Spectral zooming of MIID. (a) Image of the 1951 USAF resolution test chart (group 6) taken from MIID at wavelengths of 560, 580, 600, 610, 620, and 630 nm. The whole image denotes the area of the metalens, and the blue dashed circle denotes the image area. (b) Optical image of double-side sample of characters DSL and NJU on top of and underneath the coverslip. Scale bar=25  μm. (c) Images of the double-side object captured by MIID at different wavelengths, where clear NJU is obtained at λ=660  nm and DSL is obtained at λ=580  nm.


4.

Wide-Field Imaging of MIID Integrated with PMDP Metalens Array

There have been several works dedicated to image aberration correction with singlet or doublet metalenses to enlarge the imaging FOV.26,27,35 However, an increase of the metalens size to a macroscopic size in the single axis imaging scheme will inevitably increase the working distance, which definitely weakens the ultrathin and ultralight advantages of metalenses. We prefer the MIID to work in a short-working distance in an enlarged FOV, to keep the advantage of compact integration as it is mounted to the CMOS image sensor. However, the imaging principle constrains the single lens size with very limited imaging area, which greatly prevents its practical application. To circumvent this limitation and obtain a large FOV imaging, we proposed a metalens array for MIID to acquire multiple images and stitch them together.30,36 Due to the small FOV of individual metalenses (see details in Sec. S4 of the Supplementary Material), only part of the object can be imaged, and these images will not overlap in a 4f imaging system.37,38 Therefore, there will be blind areas as we stitch these sub-images, which prohibits constructing a complete image.

Fortunately, a powerful capability of the metasurface is the flexible design with multiplexed functions in a single device,39,40 which possibly provides a solution to make up the blind areas of the FOV. Recently, a general polarization multiplexed metasurface has been established via merging the geometric and propagation phases together to independently control phase profiles in two orthogonal polarization states, including the two circular polarization states.24,4145 Here, in order to cover the blind area among limited FOV of our MIID in a single-shot imaging process, we proposed a PMDP metalens design with cross phase profiles of certain lens areas to satisfy the requirements of two different focusing lenses working at left-hand circular polarization (LCP) and right-hand circular polarization (RCP), respectively, as shown in Fig. 4(a) (more details about the design of PMDP metalenses are provided in Sec. S5 of the Supplementary Material). By simply switching polarization states, we can obtain two independent images.

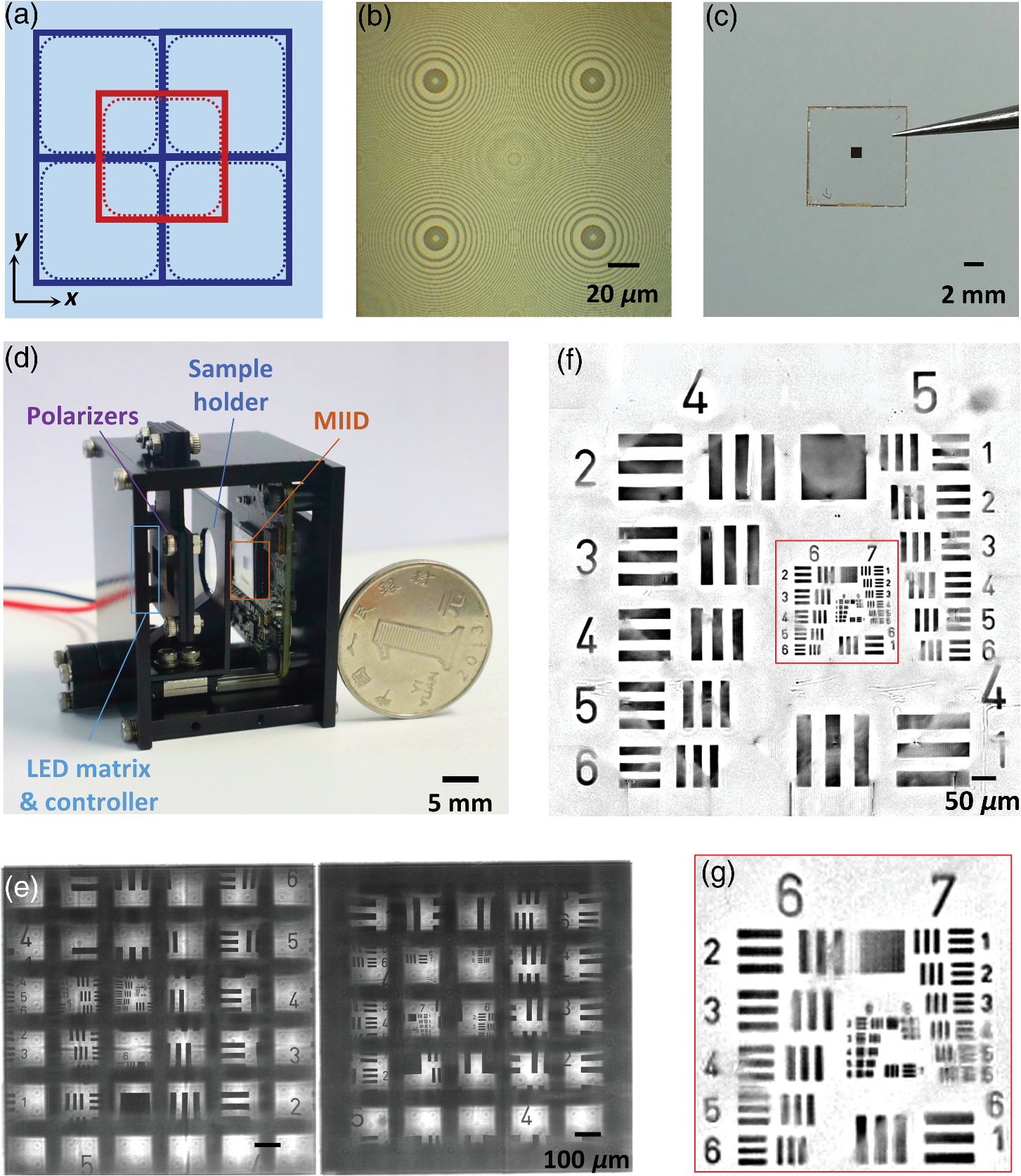

Fig. 4

Imaging of MIID integrated with PMDP metalens array. (a) Phase distribution of PMDP metalens in the xy plane. The blue and red squares denote the phase distribution for LCP and RCP metalens regions, respectively. The corresponding dashed boxes demonstrate the limited FOV. (b) Optical microscope image of a PMDP metalens with size of 200  μm. (c) Photograph of the fabricated 6×6 PMDP metalens array. (d) Photograph of the prototype of MIID (sized about 3.5  cm×3  cm×2.5  cm). (e) Raw images of the USAF 1951 resolution chart by MIID with LCP (left panel) and RCP (right panel) illuminations. (f) Stitched image from sub-images of (e) through a certain image processing, as provided in Sec. S6 of the Supplementary Material. (g) Zoomed-in image to show the resolution.


Figure 4(b) shows the optical microscopic image of a PMDP metalens with size of 200  μm. We arranged the metalens into a 6×6 array, containing 6×6 metalens for LCP multiplexed with 5×5 metalens for RCP. The entire lens region is about 1.2  mm×1.2  mm, as shown in Fig. 4(c). Each metalens is designed at an operating wavelength of 630 nm and focal length of 250  μm. To demonstrate the advances in compact integration, we have packaged the whole imaging system into a significantly miniaturized prototype with a size about 3.5  cm×3  cm×2.5  cm. Figure 4(d) shows a photograph of the prototype including the LED matrix, LED controller, polarizers, sample holder, and core component of MIID. The images of the resolution test chart for LCP and RCP incident light taken from MIID with the PMDP metalens array are shown in Fig. 4(e), respectively. The image distortion caused by monochromatic aberration is observable by the naked eye, especially for objects with large feature size. Figure 4(f) shows a stitched image by combining two sets of sub-images after distortion correction and background subtraction (the detailed proceeding is provided in Sec. S6 of the Supplementary Material). The stitched image demonstrated a wide FOV area, the same as the metalens array region (1.2  mm×1.2  mm) without losing the resolution [1.74  μm, element 2, group 8; see Fig. 4(g)]. The stitched image has some stitching artifacts such as diagonal stripes due to the uneven brightness at the center and edge of sub-images caused by vignetting. At present, the performances of our MIID are still lower than that of lensless imaging (e.g., Ref. 8) both in resolution and FOV; however, MIID provides a totally new route that holds development potential for high-speed large-FOV microscopy. Moreover, our imaging process is much simpler and timesaving (our processing time is 4  s on a laptop, while 50 s with a desktop computer is needed in Ref. 8) compared with those sophisticated post-processing algorithms in lensless imaging and would significantly save computing resources.

As an example for application, we used this MIID to image a biospecimen of a Pap smear and dragonfly wing (as shown in Fig. 5). Compared to the optical microscope images (Olympus, 10× objective, NA=0.3) in the left panels of Fig. 5, the stitched images show good consistency and better contrast for these translucent or low index-contrast biospecimens. This stitched image covers 36× times the area of a single metalens without decreasing the resolution and increasing the working distance, which is ready to expand to much larger areas until it covers the whole CMOS image sensor. Therefore, our approach does provide a successful solution to break the restriction between high resolution and wide FOV and make it feasible for high-throughput bioimaging and diagnosis.

Fig. 5

Conventional optical microscope (left) and MIID stitched images (right) of (a) Pap smear and (b) dragonfly wing. The optical microscope images are obtained with Olympus, 10×, NA=0.3.


5.

Discussions and Conclusion

We have shown a metalens-integrated compact imaging device for wide-field microscopy achieved by directly mounting the metalens to an image sensor. Based on the silicon metalens working in the red light wavelength range, the imaging performances of the integrated system, including the resolution, SNR, imaging aberration, and FOV, were systematically investigated. The spectral optical zooming and DOF-resolved imaging have been achieved by taking advantage of the large dispersion of the metalens. More importantly, the metalens array with polarization multiplexing is used to reach a wide FOV imaging, which breaks the link between resolution and FOV. Finally, a miniaturized prototype is demonstrated to show the powerful capability of compact integration. Frankly, the performance of the current MIID is not good enough compared with conventional microscope and some of the computational imaging devices. In addition to the stitching artifacts that can be further improved by optimization, the relatively low working efficiency of the metalens would mainly account for background noises and restricted imaging performance. Fortunately, there are still opportunities in improving the efficiency of metalenses by adopting low-loss materials (e.g., GaN and SiN) and higher aspect-ratio nano-post elements. Moreover, future development of smaller pixels of the CMOS sensor will also enhance the MIID capability for higher resolutions. Our approach provides a new solution of ultra-compact and wide-field imaging by taking advantage of metasurfaces, which may inspire more revolutionary compact optical devices.

Acknowledgments

The authors acknowledge the financial support from the National Key R&D Program of China (Nos. 2016YFA0202103 and 2017YFA0303701) and the National Natural Science Foundation of China (Nos. 91850204 and 11674167). Tao Li thanks the Dengfeng Project B of Nanjing University for the support. The authors declare that they have no conflicts of interest.

References

1.

A. Ozcan and E. McLeod, “Lensless imaging and sensing,” Annu. Rev. Biomed. Eng., 18 (1), 77 –102 (2016). https://doi.org/10.1146/annurev-bioeng-092515-010849 ARBEF7 1523-9829 Google Scholar

2.

N. Antipa et al., “Diffusercam: lensless single-exposure 3D imaging,” Optica, 5 (1), 1 –9 (2018). https://doi.org/10.1364/OPTICA.5.000001 Google Scholar

3.

J. Zhang et al., “Adaptive pixel-super-resolved lensfree in-line digital holography for wide-field on-chip microscopy,” Sci. Rep., 7 (1), 11777 (2017). https://doi.org/10.1038/s41598-017-11715-x SRCEC3 2045-2322 Google Scholar

4.

A. Berdeu et al., “Comparative study of fully three-dimensional reconstruction algorithms for lens-free microscopy,” Appl. Opt., 56 (13), 3939 –3951 (2017). https://doi.org/10.1364/AO.56.003939 APOPAI 0003-6935 Google Scholar

5.

G. Satat, M. Tancik and R. Raskar, “Lensless imaging with compressive ultrafast sensing,” IEEE Trans. Comput. Imaging, 3 (3), 398 –407 (2017). https://doi.org/10.1109/TCI.2017.2684624 Google Scholar

6.

T. Nakamura et al., “Super field-of-view lensless camera by coded image sensors,” Sensors, 19 (6), 1329 (2019). https://doi.org/10.3390/s19061329 SNSRES 0746-9462 Google Scholar

7.

T. Aidukas et al., “Low-cost, sub-micron resolution, wide-field computational microscopy using opensource hardware,” Sci. Rep., 9 (1), 7457 (2019). https://doi.org/10.1038/s41598-019-43845-9 SRCEC3 2045-2322 Google Scholar

8.

S. Jiang et al., “Wide-field, high-resolution lensless on-chip microscopy via near-field blind ptychographic modulation,” Lab Chip, 20 (6), 1058 –1065 (2020). https://doi.org/10.1039/C9LC01027K LCAHAM 1473-0197 Google Scholar

9.

N. Yu et al., “Light propagation with phase discontinuities: generalized laws of reflection and refraction,” Science, 334 (6054), 333 –337 (2011). https://doi.org/10.1126/science.1210713 SCIEAS 0036-8075 Google Scholar

10.

D. Lin et al., “Dielectric gradient metasurface optical elements,” Science, 345 (6194), 298 –302 (2014). https://doi.org/10.1126/science.1253213 SCIEAS 0036-8075 Google Scholar

11.

N. Yu and F. Capasso, “Flat optics with designer metasurfaces,” Nat. Mater., 13 (2), 139 –150 (2014). https://doi.org/10.1038/nmat3839 NMAACR 1476-1122 Google Scholar

12.

A. Arbabi et al., “Dielectric metasurfaces for complete control of phase and polarization with subwavelength spatial resolution and high transmission,” Nat. Nanotechnol., 10 (11), 937 –943 (2015). https://doi.org/10.1038/nnano.2015.186 NNAABX 1748-3387 Google Scholar

13.

M. Faraji-Dana et al., “Compact folded metasurface spectrometer,” Nat. Commun., 9 (1), 4196 (2018). https://doi.org/10.1038/s41467-018-06495-5 NCAOBW 2041-1723 Google Scholar

14.

E. Nazemosadat et al., “Dielectric broadband metasurfaces for fiber mode-multiplexed communications,” Adv. Opt. Mater., 7 (14), 1801679 (2019). https://doi.org/10.1002/adom.201801679 2195-1071 Google Scholar

15.

F. Yesilkoy et al., “Ultrasensitive hyperspectral imaging and biodetection enabled by dielectric metasurfaces,” Nat. Photonics, 13 (6), 390 –396 (2019). https://doi.org/10.1038/s41566-019-0394-6 NPAHBY 1749-4885 Google Scholar

16.

F. Balli et al., “A hybrid achromatic metalens,” Nat. Commun., 11 (1), 3892 (2020). https://doi.org/10.1038/s41467-020-17646-y NCAOBW 2041-1723 Google Scholar

17.

S. Byrnes et al., “Designing large, high-efficiency, high-numerical-aperture, transmissive meta-lenses for visible light,” Opt. Express, 24 (5), 5110 –5124 (2018). https://doi.org/10.1364/OE.24.005110 OPEXFF 1094-4087 Google Scholar

18.

T. Phan et al., “High-efficiency, large-area, topology-optimized metasurfaces,” Light Sci. Appl., 8 (1), 48 (2019). https://doi.org/10.1038/s41377-019-0159-5 Google Scholar

19.

W. T. Chen et al., “A broadband achromatic metalens for focusing and imaging in the visible,” Nat. Nanotechnol., 13 (3), 220 –226 (2018). https://doi.org/10.1038/s41565-017-0034-6 NNAABX 1748-3387 Google Scholar

20.

S. Wang et al., “A broadband achromatic metalens in the visible,” Nat. Nanotechnol., 13 (3), 227 –232 (2018). https://doi.org/10.1038/s41565-017-0052-4 NNAABX 1748-3387 Google Scholar

21.

S. Shrestha et al., “Broadband achromatic dielectric metalenses,” Light Sci. Appl., 7 (1), 85 (2018). https://doi.org/10.1038/s41377-018-0078-x Google Scholar

22.

B. Groever, W. T. Chen and F. Capasso, “Meta-lens doublet in the visible region,” Nano Lett., 17 (8), 4902 –4907 (2017). https://doi.org/10.1021/acs.nanolett.7b01888 NALEFD 1530-6984 Google Scholar

23.

Y. Guo et al., “High-efficiency and wide-angle beam steering based on catenary optical fields in ultrathin metalens,” Adv. Opt. Mater., 6 (19), 1800592 (2018). https://doi.org/10.1002/adom.201800592 2195-1071 Google Scholar

24.

J. P. B. Mueller et al., “Metasurface polarization optics: independent phase control of arbitrary orthogonal states of polarization,” Phys. Rev. Lett., 118 (11), 113901 (2017). https://doi.org/10.1103/PhysRevLett.118.113901 PRLTAO 0031-9007 Google Scholar

25.

N. A. Rubin et al., “Matrix Fourier optics enables a compact full-Stokes polarization camera,” Science, 365 (6448), eaax1839 (2019). https://doi.org/10.1126/science.aax1839 SCIEAS 0036-8075 Google Scholar

26.

A. Arbabi et al., “Miniature optical planar camera based on a wide-angle metasurface doublet corrected for monochromatic aberrations,” Nat. Commun., 7 (1), 13682 (2016). https://doi.org/10.1038/ncomms13682 NCAOBW 2041-1723 Google Scholar

27.

Y. Zhou et al., “Flat optics for image differentiation,” Nat. Photonics, 14 (5), 316 –323 (2020). https://doi.org/10.1038/s41566-020-0591-3 NPAHBY 1749-4885 Google Scholar

28.

M. Khorasaninejad et al., “Metalenses at visible wavelengths: diffraction-limited focusing and subwavelength resolution imaging,” Science, 352 (6290), 1190 –1194 (2016). https://doi.org/10.1126/science.aaf6644 SCIEAS 0036-8075 Google Scholar

29.

Z.-B. Fan et al., “Silicon nitride metalenses for close-to-one numerical aperture and wide-angle visible imaging,” Phys. Rev. Appl., 10 (1), 014005 (2018). https://doi.org/10.1103/PhysRevApplied.10.014005 PRAHB2 2331-7019 Google Scholar

30.

R. Lin et al., “Achromatic metalens array for full-colour light-field imaging,” Nat. Nanotechnol., 14 (3), 227 –231 (2019). https://doi.org/10.1038/s41565-018-0347-0 NNAABX 1748-3387 Google Scholar

31.

C. Chen et al., “Spectral tomographic imaging with aplanatic metalens,” Light Sci. Appl., 8 (1), 99 (2019). https://doi.org/10.1038/s41377-019-0208-0 Google Scholar

32.

G. Jin et al., “Lens-free shadow image based high-throughput continuous cell monitoring technique,” Biosens. Bioelectron., 38 (1), 126 –131 (2012). https://doi.org/10.1016/j.bios.2012.05.022 BBIOE4 0956-5663 Google Scholar

33.

L. Huang et al., “Dispersionless phase discontinuities for controlling light propagation,” Nano Lett., 12 (11), 5750 –5755 (2012). https://doi.org/10.1021/nl303031j NALEFD 1530-6984 Google Scholar

34.

G. Zheng et al., “Metasurface holograms reaching 80% efficiency,” Nat. Nanotechnol., 10 (4), 308 –312 (2015). https://doi.org/10.1038/nnano.2015.2 NNAABX 1748-3387 Google Scholar

35.

J. Engelberg et al., “Near-IR wide-field-of-view Huygens metalens for outdoor imaging applications,” Nanophotonics, 9 (2), 361 –370 (2020). https://doi.org/10.1515/nanoph-2019-0177 Google Scholar

36.

J. M. Moghimi et al., “Micro-Fresnel-zone-plate array on flexible substrate for large field-of-view and focus scanning,” Sci. Rep., 5 (1), 15861 (2016). https://doi.org/10.1038/srep15861 SRCEC3 2045-2322 Google Scholar

37.

R. Ng et al., “Light field photography with a hand-held plenoptic camera,” (2005). Google Scholar

38.

R. Prevedel et al., “Simultaneous whole-animal 3D imaging of neuronal activity using light-field microscopy,” Nat. Methods, 11 (7), 727 –730 (2014). https://doi.org/10.1038/nmeth.2964 1548-7091 Google Scholar

39.

S. Boroviks et al., “Multifunctional metamirror: polarization splitting and focusing,” ACS Photonics, 5 (5), 1648 –1653 (2017). https://doi.org/10.1021/acsphotonics.7b01091 Google Scholar

40.

L. Jin et al., “Noninterleaved metasurface for (261) spin- and wavelength-encoded holograms,” Nano Lett., 18 (12), 8016 –8024 (2018). https://doi.org/10.1021/acs.nanolett.8b04246 NALEFD 1530-6984 Google Scholar

41.

N. A. Rubin et al., “Polarization state generation and measurement with a single metasurface,” Opt. Express, 26 (17), 21455 –21478 (2018). https://doi.org/10.1364/OE.26.021455 OPEXFF 1094-4087 Google Scholar

42.

B. Groever et al., “High-efficiency chiral meta-lens,” Sci. Rep., 8 (1), 7240 (2018). https://doi.org/10.1038/s41598-018-25675-3 SRCEC3 2045-2322 Google Scholar

43.

A. C. Overvig et al., “Dielectric metasurfaces for complete and independent control of the optical amplitude and phase,” Light Sci. Appl., 8 (1), 92 (2019). https://doi.org/10.1038/s41377-019-0201-7 Google Scholar

44.

P. Huo et al., “Photonic spin-multiplexing metasurface for switchable spiral phase contrast imaging,” Nano Lett., 20 (4), 2791 –2798 (2020). https://doi.org/10.1021/acs.nanolett.0c00471 NALEFD 1530-6984 Google Scholar

45.

R. Y. Tsai, “A versatile camera calibration technique for high-accuracy 3D machine vision metrology using off-the-shelf TV camera and lenses,” IEEE J. Rob. Autom., 3 (4), 323 –344 (1987). https://doi.org/10.1109/JRA.1987.1087109 IJRAE4 0882-4967 Google Scholar

Biography

Beibei Xu is a PhD student working under supervision of Tao Li in the College of Engineering and Applied Sciences at Nanjing University. She received her MS degree from Nanjing University in 2017. Currently, she is working on metasurfaces and metalens devices.

Hanmeng Li is a PhD student working under supervision of Tao Li in the College of Engineering and Applied Sciences at Nanjing University. He is currently working on metasurface and nanofabrications.

Shenglun Gao is a master’s student working under supervision of Tao Li in the College of Engineering and Applied Sciences at Nanjing University. He is currently working on nanofabrications.

Xia Hua is a PhD student working in the School of Electronic Science and Engineering at Nanjing University. He received his BS degree from Nanjing University in 2010. Currently, he is working on computational photography.

Cheng Yang is a PhD student working in the School of Electronic Science and Engineering at Nanjing University. He received his BS degree from Nanjing University of Science and Technology in 2010. Currently, he is working on sensing and imaging technology.

Chen Chen is a PhD student working under supervision of Tao Li in the College of Engineering and Applied Sciences at Nanjing University. She received her BS degree from Nanjing University in 2016. Currently, she is working on metasurface devices.

Feng Yan is a professor at Nanjing University. He received his PhD from Rutgers University in 2003. He is the group leader of Nanjing University Sensing and Imaging Engineering Center. His research interests include optoelectronic and integrated circuit technology, devices, circuits, chips, and systems.

Shining Zhu is a professor at Nanjing University. He received his PhD from Nanjing University in 1996 and is the group leader of Dielectric Superlattice Laboratory. His research interests include condensed matter optics, quasi-phase matching physics and nonlinear optics, optoelectronic functional materials, quantum optics, and metamaterials.

Tao Li is a professor in the College of Engineering and Applied Sciences in Nanjing University. He received his PhD from Nanjing University in 2005. His research interests include metamaterials, plasmonics, and nanophotonic integrations.
