In the quest to realize a scalable quantum network, semiconductor quantum dots (QDs) offer distinct advantages, including high single-photon efficiency and indistinguishability, high repetition rate (tens of gigahertz with Purcell enhancement), interconnectivity with spin qubits, and a scalable on-chip platform. However, in the past two decades, the visibility of quantum interference between independent QDs rarely went beyond the classical limit of 50%, and the distances were limited from a few meters to kilometers. Here, we report quantum interference between two single photons from independent QDs separated by a 302 km optical fiber. The single photons are generated from resonantly driven single QDs deterministically coupled to microcavities. Quantum frequency conversions are used to eliminate the QD inhomogeneity and shift the emission wavelength to the telecommunication band. The observed interference visibility is 0.67 ± 0.02 (0.93 ± 0.04) without (with) temporal filtering. Feasible improvements can further extend the distance to ∼600 km. Our work represents a key step to long-distance solid-state quantum networks.
Quantum communications exploit the fundamental properties of quantum mechanics, such as superposition and entanglement, to implement communication tasks that are infeasible with classical means. Examples include quantum key distribution1,2 and quantum teleportation.3 Since the early days of table top experiments,4,5 one of the most significant challenges of the field is to extend the distance of quantum communication to a practically useful scale. Exciting progress6 has been made over the past decades that culminated in satellite-based quantum communication over 1000 km.7 Taking advantage of the empty outer space, the satellite-based transmission channel showed a much lower loss than the optical fibers.
In addition to the quantum channel, another important ingredient of long-distance quantum communications is the quantum light source.8,9 An ideal candidate is a single-photon source that emits one and only one photon each time.10 To obtain a high count rate after transmission, the single-photon sources should have a high system efficiency (which includes the generation,11 extraction,12,13 and collection14 efficiencies) and high repetition rate15,16 (which is intrinsically limited by the emitter’s radiative lifetime). For quantum network applications, such as quantum teleportation, which requires interfering independent photons, the single photons should be transform-limited.17 Additional requirements include a scalable platform, tunable and narrowband linewidth (favorable for temporal synchronization), and interconnectivity with matter qubits. Quantum dots (QDs) have been considered a promising solid-state system for quantum networks.9,10,17,18 However, previous attempts at QD-based two-photon interferences19–29 were limited to a few kilometer scales. There are a number of challenges to achieve a long-distance quantum interference, including high performance on single-photon source brightness, purity, indistinguishability, wavelength band and matching, high-fidelity transmission, and more crucially, integrating all these parameters together compatibly.
In this article, we report high-visibility quantum interference between two independent QDs linked with optical fibers by developing efficient and indistinguishable single-photon sources, ultralow noise and tunable single-photon frequency conversion, and low-dispersion long fiber transmission. As a first step, our experiment points to a promising route to long-distance solid-state quantum networks.9

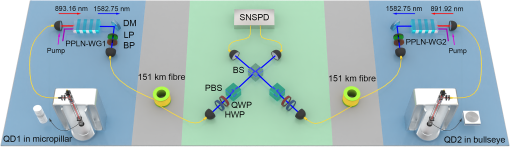

Our experimental configuration is shown in Fig. 1. Two QDs are housed inside two cryogenic-free cryostats with a temperature of 4 and 1.7 K, respectively. To maximize the efficiency and indistinguishability of the single photons, the QDs are spectrally and spatially optimally coupled to microcavities. Two different types of microcavities are used: QD1 is embedded inside a narrowband micropillar, and QD2 is coupled to a broadband bullseye cavity. Under resonant -pulse excitation by an ultrafast laser, resonance fluorescence single photons at wavelengths of () are emitted from QD1 (QD2) and collected into single-mode fibers.

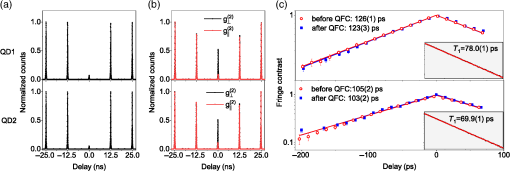

Under an 80.3-MHz pumping rate, at the output of collection single-mode optical fibers, the final single-photon rate is 20.2 and 16.2 MHz for QD1 and QD2, respectively, corresponding to a system efficiency of 25% and 20%. The second-order correlations of the single-photon sources are characterized by Hanbury–Brown–Twiss (HBT) measurements, which give and , as plotted in Fig. 2(a). The mutual indistinguishability between two single photons from the same QDs is measured using a Hong–Ou–Mandel (HOM) interferometer where they overlap at a 50:50 beam splitter. These two single photons are consecutively emitted from the same QDs with a time separation of 12.5 ns. Figure 2(b) shows the histograms of normalized coincidences for the two photons set at parallel and orthogonal polarizations. After correction of the residual second-order correlation, we extract a photon indistinguishability of 91.9(1)% and 83.9(3)% for QD1 and QD2, respectively.
It is important to note the difference between the mutual indistinguishability at 12.5-ns separation and the Fourier transform limit.17 The former is immune to any environmentally induced spectral diffusion that occurs at a time scale much slower than 12.5 ns. What really matters for the quantum interference between independent QDs is the degree of transform limit, that is, the ratio of , where and are radiative lifetime and coherent time of the single photons, respectively. We measure using time-resolved pulsed resonance fluorescence. By fitting the exponential decay, we extract the radiative lifetime of 78.0(1) ps for QD1 and 69.9(1) ps for QD2, as illustrated in the insets of Fig. 2(c). The coherence time is measured using a Mach–Zehnder interferometer and then calculated by fitting the fringe contrast as a function of temporal delay. Figure 2(c) shows the coherence time of the single photons, which is 126(1) ps for QD1 and 105(2) ps for QD2. These allow us to calculate the degree of transform limit as 80.8(1)% for QD1 and 75.1(1)% for QD2, which are slightly lower than the 12.5-ns indistinguishability we expected.
Quantum Frequency Conversion
There are two main challenges in sending the QD single photons through long-distance optical fibers and observing quantum interference. First, the InAs QDs emission is at a wavelength of , which should be converted to telecommunication wavelength to exploit the low transmission loss in commercially available fibers. So far, the QDs directly emitting single photons in the telecommunications wavelength30–34 have not yet reached a photon count rate comparable to their near-infrared counterparts. Second, the self-assembled QDs emit single photons intrinsically at different wavelengths, which would reveal which-way information to prevent the HOM interference.
In this work, we use quantum frequency conversion (QFC)35–37 to overcome both problems. To this end, we fabricate a periodically poled lithium niobate (PPLN) waveguide for difference frequency generation (see Fig. S3 in the Supplemental Material). The energy conservation demands , where , , and represent the wavelengths of the signal, pump, and converted photons, respectively. To precisely tune the two converted wavelengths into resonance, the pump lasers have both a coarse tuning range of and a fine tuning resolution of 3.6 MHz using the laser piezoelectric (PZT) actuator, which is times and of the QD emission linewidth, respectively [Fig. 3(a)]. For the wavelengths of QD1 and QD2, the pump lasers are tuned at 2049.98 and 2043.46 nm, respectively, which converts both into 1582.75 nm (as labeled in Fig. 1).

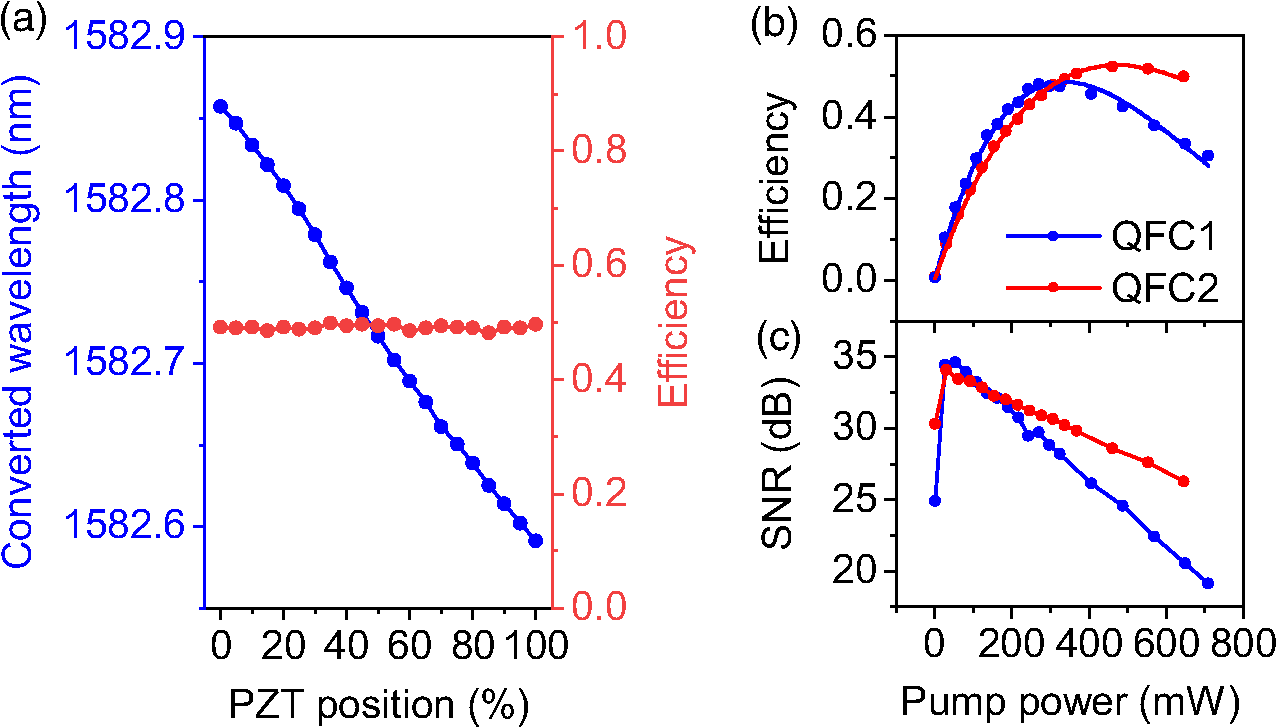

By optimizing the nonlinear interaction, waveguide coupling, and transmission rate, the overall single-photon conversion efficiencies reach for both devices [Fig. 3(b)]. To suppress the noise background from the residual pump laser, harmonic generation, and broadband Raman photons induced by the strong pump laser, we use a combination of dichromatic mirrors and optical filters to obtain a signal-to-noise ratio of 28 to 30 dB [Fig. 3(c)]. We note that an advantage of the frequency conversion process is that it does not interfere with the quantum emitter itself. To test whether the converted photons still preserve the coherence properties of the signal single photons, we measure the purity and coherence time of the single photons after conversion, which, as plotted in Fig. S4 in the Supplemental Material and Fig. 2(c), show near-perfect overlap with the data before conversion.
Fiber Transmission of Single Photons
The dominant loss is from the long-distance fiber transmission of the single photons. As the transmission rate of the fiber is , the loss over 300 km is 57 dB. Fiber transmission of single photons not only causes photon loss, but can also influence photon’s properties. For example, the orientation of photon polarization can be changed in optical fibers. The photon’s arrival time can drift due to the change of the fiber length caused by temperature fluctuation.
Efforts are taken to preserve the photon’s properties during the fiber transmission. To reduce the drift of the photon’s arrival time, the temperature of the fibers is stabilized within . The measured typical time drift is within 10 ps per hour, which is much smaller than the photon’s coherence time. A set of half-wave-plates (HWPs) and quarter-wave-plates (QWPs) is used to control the polarization. As shown in Fig. S6 in the Supplemental Material, there is a slow wandering of polarization drift over hours, which is transformed into level efficiency loss by applying polarization filtering at the end of the optical fibers.
There is also an effect of frequency dispersion in optical fibers owing to a wavelength-dependent velocity, which could reduce the indistinguishability of the single photons. The dispersions of QD1 and QD2 single photons over the 150-km fiber are 66.5 and 89.4 ps, respectively, which are comparable to the single photon’s coherence time of 105 to 120 ps. If two photons go through the same fiber length, they will experience the same dispersion. The symmetric transmission configuration setup in our experiment thus makes the two-photon interference immune to fiber dispersion.38,39
Remote Two-Photon Interference
After faithful transmission over the optical fibers, the two single photons in the outputs are synchronized and superposed on a beam splitter for quantum interference. We use superconducting nanowire single-photon detectors with an efficiency of 76% and a time resolution of to register the finally arrived photons. The two-photon coincidence counts when the two photons are controllably set at the same frequency (red) and far-detuned (black, ) are plotted for a range of total fiber length of 24 m [Fig. 4(a)], 101 km [Fig. 4(b)], 201 km [Fig. 4(c)], and 302 km [Fig. 4(d)]. Note that the counts presented here are the raw data without any background subtraction.
The extracted raw visibilities are at a level of for different optical fiber lengths. There is no evident drop in the visibility for increasing fiber length, as expected from the dispersion-cancellation symmetric transmission. These raw visibilities significantly exceed the classical limit of 50%, which conclusively demonstrates genuine two-photon quantum interference. The visibilities are plotted (red dots) in Fig. 4(e) as a function of the fiber length, which is in good agreement with the theoretical calculation (red line) that considers the for each QD, their bandwidth mismatch, and their imperfect second-order correlations. Considering the and , the corrected two-photon interference visibility is at 302 km.
Temporal filtering can also significantly increase the two-photon interference visibility. The time resolution of the single-photon detectors is 70 ps, much smaller than a photon’s coherence time. We plot in Fig. 4(f) the raw visibilities as a function of coincidence time window. The raw visibility increases substantially with a narrowing time window, as the temporal filtering effectively improves the coherence of the single photons. At 20 ps, the visibility reaches . Note that such a filtering, only at the cost of heralding efficiency, can be useful in future experiments on high-fidelity entanglement swapping of single photons40,41 and single spins.42,43

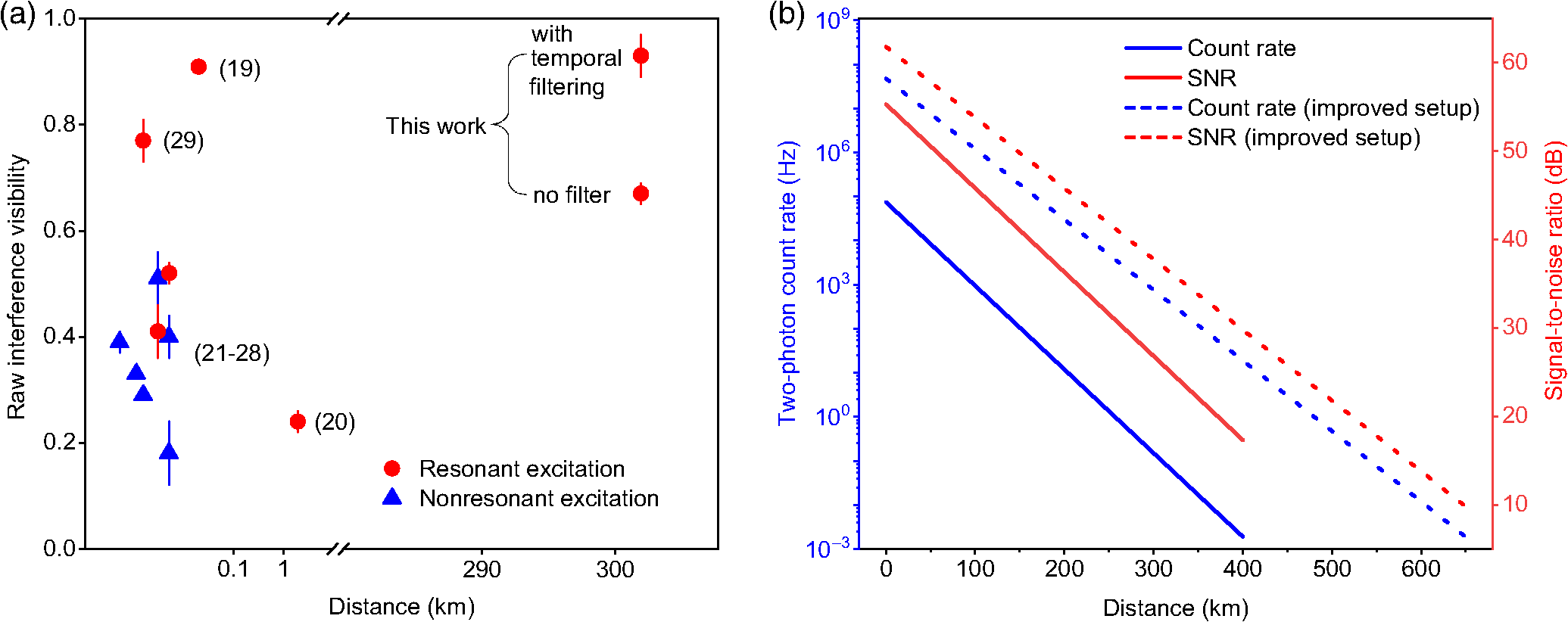

Figure 5(a) summarizes two-photon interference distance and visibilities of previously reported work between two QDs, to the best of our knowledge.19–29 This experiment establishes a distance that is more than 2 orders of magnitude larger than the previous record, with, simultaneously, the highest visibility.
A number of straightforward improvements can further extend the distances. The short of the QDs enabled by the high Purcell factors allows one to increase the repetition rate from 80 MHz to 2.6 GHz, a times enhancement. Using tunable open microcavities,16 it is feasible for the single photon system efficiency to reach 80%. In addition, ultralow-loss optical fiber with transmission loss of has become available. A numerical simulation curve is plotted in Fig. 5(b). With these ready improvements, the transmission distance can be extended to , where the coincidence count rate will be 0.012 Hz with a signal-to-noise ratio of 10 dB. Such a distance scale is already comparable to the well-developed twin-field quantum key distribution experiments.44,45
In summary, our work represents an important step toward quantum telecommunication networks using semiconductor QDs and telecom fiber channels. The experiment creates a solid-state platform to implement quantum teleportation,5 entanglement swapping,40,41 quantum relay,46 and teleportation of controlled NOT gates at hundreds of kilometers scale in a multi-user network configuration. A key advantage of using the single QDs, compared to spontaneous parametric downconversion, is the intrinsically deterministic single-photon emission and natural suppression of double pair events, which can allow the realization of multi-photon entanglement and interferometry in a non-postselection way.6 A large number of entangled photons can be generated in this platform by, e.g., heralded creation of three-photon Greenberger–Horne–Zeilinger states47 from six single photons, and using it as a basic resource and fuse into larger ones,48 which will be useful resources for all-photonic quantum repeaters49 and distributed quantum computing. The distances and functionalities can be further improved by combining with suitable quantum memories. Thus, intercity-scale fully quantum networks appear technologically promising based on a scalable semiconductor platform.
Note: See Supplemental Material for theoretical analysis of two-photon quantum interference and more detailed descriptions for quantum-dot single-photon sources and QFC, which includes Refs. 5051.52.–53.
This work was supported by the National Natural Science Foundation of China (91836303), the National Key R&D Program of China (2019YFA0308700), the Chinese Academy of Sciences, the Anhui Initiative in Quantum Information Technologies, the Natural Science Foundation of Shandong Province (ZR2020LLZ007), and the Shanghai Municipal Science and Technology Major Project (2019SHZDZX01).
