1 November 2009 Analysis of bacterial chemotactic response using dynamic laser speckle
Author Affiliations +
Abstract
Chemotaxis has a meaningful role in several fields, such as microbial physiology, medicine and biotechnology. We present a new application of dynamic laser speckle (or biospeckle) to detect different degrees of bacterial motility during chemotactic response experiments. Encouraging results showed different bacterial dynamic responses due to differences in the hardness of the support in the swarming plates. We compare this method to a conventional technique that uses white light. Both methods showed to be analogous and, in some cases, complementary. The results suggest that biospeckle processed images can be used as an alternative method to evaluate bacterial chemotactic response and can supply additional information about the bacterial motility in different areas of the swarm plate assay that might be useful for biological analysis.

1.

Introduction

Chemotaxis is the directed movement of cells in response to a concentration gradient of a chemical attractant or repellent. The transport of bacterial populations through nonmixed environments is important in several areas, including in situ bioremediation and microbial competition.1 Chemotaxis in microorganisms has a significant role in enhancing the biodegradation of pollutants2 and an important place in the pathogenesis of enteric bacteria and Vibrio cholerae infections.3 The role of chemotaxis in Pseudomonas aeruginosa is well known; it is involved in its biofilm formation, persistence, and pathogenesis,4 as well as in adherence to solid surfaces.5 One strain of P. aeruginosa isolated from soil6 was used in this work for chemotactic assays due to its ubiquity and significant role in biotechnology and medicine.

More than one assay has been developed to show qualitative bacterial chemotaxis in semisolid and liquid mediums, such as agarose plug assay, swarming assay, drop assay, and capillary assay.7 In all of them, the chemotactic response is inferred by observing the spatial bacteria accumulation at different times. The swarm plate assay is a qualitative method based on the metabolism of an attractant. A carbon source (attractant) is mixed with a low percentage of agar media and poured into a transparent dish. Bacteria are stabbed in the middle of the dish and incubated. A sharp chemotactic band of bacteria growing outward is visualized in the dish, using white light, as a result of attractant metabolization and the resultant concentration gradient.7 Given its cumulative feature, this method presents advantages for long-time macroscopic observation and easy conditions of repeatability in comparison to other. However, the visible results depend on the experimental conditions and sometimes concentric nonvisible rings might not be detected.

Other optical techniques have been used for characterization of cells and bacteria motility and chemotaxis. For example, a laser-diffraction capillary assay was developed by Schmidt 8 to measure bacterial random motility coefficients in semisolid media. Recently, Tan 9 has demonstrated that it is possible to use optical coherent tomography (OCT) to evaluate dynamic cell behavior. They investigated and characterized a variety of cell processes in thick-tissue models, such as chemotaxis migration, proliferation, deadhesion, and cell-material interactions. The images obtained by the OCT technique were compared to the images obtained by confocal microscopy. Both techniques require complex and expensive equipment.

On the other hand, several biological tissues10, 11, 12 have been studied using laser speckle techniques. Nonpolished objects illuminated by laser light exhibit a visual granular appearance called speckle. This pattern is originated by the random interference of coherent wavelets coming from the scattering centers of the surface. Because of its roughness, traveling distances may differ in several wavelengths. Similar effects occur when a ground glass or other rough but transparent surface is illuminated from behind, in which case a static speckle pattern is obtained.13 If the light scattered by the surface is altered by moving particles, such as bacteria, then the obtained pattern evolves in time and it is called dynamic speckle.12 Light wavelets are rescattered by moving microorganisms in slightly different frequencies due to Doppler effects.14

By analyzing the speckle pattern over time using dedicated algorithms, segmented images corresponding to different activity levels of the samples can be obtained.10, 15, 16 A computer-based acquisition system enables the recording of dynamic speckle patterns, which are postprocessed using algorithms such as generalized differences,16 wavelet entropy,17 and spectral bands decomposition.18

In this work, we present the dynamic speckle activity segmentation as an alternative method to detect different degrees of motility and chemotaxis in bacteria swarming plates. The conventional white-light method detects microorganism accumulations through their optical density, without differentiating them according to their motility level. In contrast, the biospeckle technique detects microorganisms in movement. Chemotaxis response of P. aeruginosa toward attractants was analyzed in swarm assay with both methods.

2.

Experimental Procedures

2.1.

Culture of P. aeruginosa

A strain of P. aeruginosa isolated from soil6, 19 was suspended into mineral salts (MS) liquid medium (composition, in grams per liter: K2HPO4 , 11.2, KH2PO4 , 4.8 (NH4)2SO4 , 2, MgSO4.7H2O , 0.246, FeSO4.7H2O , 5×104 , pH 7) supplemented with tryptone at a final concentration of 1% (w/v). After 24h of incubation at 25°C in an orbital shaker at 120rpm , the cells were harvested by centrifugation at 3500rpm during 15min . Then they were washed (one time) with sterile motility buffer (MB) ( 10mM potassium phosphate pH 7, 0.1mM EDTA) and centrifuged again. The resulting precipitated cells were resuspended in MB previously vortexed to achieve good aeration. After that, the cells suspended in motility buffer, without any source of carbon and energy, were placed again in the shaker at 120rpm for 24h . Aliquots (0.003mL) were used for inoculating each swarm plate in chemotaxis assays.

2.2.

Motility Assays

We used supports with different degrees of hardness to verify if this biospeckle technique could detect bacterial motility. Four well plates were used, as described in Fig. 1a . The wells contained MS supports with tryptone (0.025% w/v) as attractant and different concentrations of high-purity agar-agar: 0.25, 0.5, and 1.5% (w/v). The upper left well was used as a negative control in which a drop of buffer (MB) without bacteria was added. The other ones were inoculated, each one with 0.003mL of cells resuspended in motility buffer.

Fig. 1

(a) Wells plate photograph. Arrows indicate agar-agar concentrations. (b) Swarm plate photograph. Arrows indicate attractant concentrations.


2.3.

Swarm Plate Assays

The swarming assay7, 20 was carried out to confirm the bacterial chemotactic response. We used a swarm plate divided in four quadrants (designated as A, B, C, D) with a little central squared well [Fig. 1b]. The vertexes of this well were opened toward the four quadrants. Each quadrant contained soft agar-agar (0.25% w/v) with the following chemoattractants: (A) none (negative control), (B) peptone (0.025 w/v), (C) glutamate (0.025% w/v), and (D) glycerol (0.2% w/v). Harder agar-agar solution (0.5% w/v) was deposited inside the central well in order to slow down the interquadrant chemoeffector diffusion through the central well. The swarming assay started when aliquots of cells (30μL) resuspended in MB were inoculated into the central well. The chemoattractants in the outer quadrants spread toward the central well generating a concentration gradient necessary for the bacterial chemotactic response.

2.4.

Dynamic Laser Speckle (Biospeckle) Method

The proposed method was implemented using the setup shown in Fig. 2 . An expanded and attenuated HeNe laser ( 632.8nm and 30mW ) illuminated the plate under study from the bottom through a ground glass diffuser. A CCD camera connected to a frame grabber registered a sequence of images ( 8bits and 768×576 squared pixels) and stored it into the computer. A constant 4-Hz sampling frequency was used, and the camera integration (exposure) time was set in 40ms .

Fig. 2

Setup employed in the application of dynamic laser speckle technique to detect motility and chemotaxis in bacteria.


A set of 400 sequential speckle images were acquired using the described setup. The lens of the camera was focused on the plate, and its pupil was empirically adjusted using the camera diaphragm to obtain the best spatial resolution with a speckle grain diameter comparable to the pixel size. In our case, the size of the pixel of the detector was 8.3×8.3μm . Each pixel intensity time series (signal) was considered stationary in a wide sense during the acquisition process, assuming that bacterial population movement did not exhibit relevant changes during the acquisition lapse. An infinite impulse response (IIR) bandpass digital filter was used to process these signals, and the energy of each pixel filtered time series was calculated.18 The implemented filter was a fifth-order Butterworth filter with a 12Hz bandpass. To obtain an activity image, a pseudo-colored image was built where higher energy value regions stand for higher bacterial intensity movement. Finally, a spatial median filter was applied to this image to diminish granular noise, enabling better region segmentation.

2.5.

White-Light Conventional Technique

The conventional technique to detect chemotaxis consists in observing the plate illuminated with white light from the bottom.20 Photographs were taken with the CCD camera according to the scheme of Fig. 2, where the diffuser was removed and the mirror was replaced by a circular fluorescent lamp placed over a dark surface.

3.

Results and Discussion

As a first step to analyze dynamic speckle from bacteria, we carried out four swarming experiments with different degrees of hardness of the agar-agar [Fig. 1a]. It is well known that the rate of motility and chemotactic response is reduced as the hardness of the material support is increased. In Fig. 3, we present pseudocolored images obtained by the proposed method at 10min [Fig. 3a] and 24h [Fig. 3b] after inoculation. The bottom wells show a biological activity expansion between Figs. 3a and 3b, which confirms that the activity cluster expands faster when the agar-agar hardness is reduced. On the other hand, the image zones corresponding to the well that was not inoculated with bacteria (upper left well), and the one with the hardest agar-agar (upper right well), did not present activity in comparison to the bottom wells regions [Figs. 3a and 3b].

Fig. 3

Biospeckle processed images of swarm assays: (a) at 10min after inoculation and (b) at 24h after inoculation.


We could conclude that speckle activity is a strong indication of local metabolic activity with displacements of bacteria. The greatest contribution to biospeckle is due to the local biological activity and the local random motion of bacteria, whereas the displacement of the cluster of bacteria, produced not only by their movement but also by their reproduction, is very slow and observed only after a few hours.

The biospeckle technique was then evaluated in a swarm plate assay. We analyzed this plate with the white-light conventional technique20 (Fig. 4 ) and the proposed biospeckle method (Fig. 5 ). The subfigures of Figs. 4 and 5 were obtained at: (a) 10min , (b) 21h , and (c) 43h after inoculation. This test verified that the biospeckle and white-light images are highly correlated. For example, the presence of two rings observed with white light in quadrant C (glutamate) of Fig. 4c is validated with dynamic laser speckle image as dense zones corresponding to high activity areas, as seen in Fig. 5c.

Fig. 4

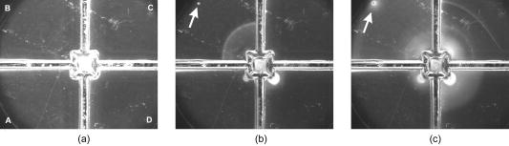

White-light photograph of a swarm assay with agar-agar (0.25% w/v) as support and the next chemoattractans in each quadrant: (A) none (negative control), (B) peptone, (C) glutamate, and (D) glycerol. The elapsed time since inoculation with P. aeruginosa is (a) 10min , (b) 21h , and (c) 43h . The arrows indicate contaminations.


Fig. 5

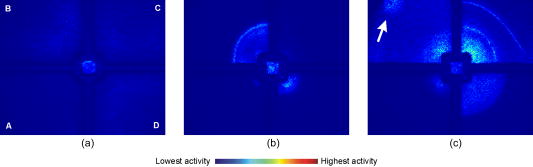

Biospeckle processed images of a swarm assay with agar-agar (0.25% w/v) as support and the next chemoattractans in each quadrant: (A) none (negative control), (B) peptone, (C) glutamate, and (D) glycerol. The elapsed time since inoculation with P. aeruginosa is (a) 10min , (b) 21h , and (c) 43h . The arrows indicate contaminations.


In Fig. 4c, a high light-intensity region close to the vertex of the central little well was observable in the glycerol quadrant (D) using white light. However, in the processed biospeckle image [Fig. 5c], this small region is not clearly distinguishable. Hence, comparing both images we could infer that this small zone also contains bacteria with a very low motility level that do not contribute to the dynamic speckle response. This is an example of additional information that can provide the proposed technique when combined with the traditional one.

A small spot due to contamination was detected at 21h after inoculation in the upper left quadrant of the white-light image [Fig. 4b]. Such a spot is almost undetectable in the corresponding biospeckle image [Fig. 5b]. This would mean that it belongs to a microorganism area with very low motility. Although it is also visible in Fig. 4c the contamination border is masked due to the presence of P. aeruginosa in the same area. Nevertheless, in the biospeckle image [Fig. 5c], after 43h , this contamination area was also detected and appeared to be enlarged, presenting a uniform activity level with better defined borders.

To show the differences in the information contained in the images obtained with both methods, the difference between biospeckle images and white-light images was calculated. The results, to which no quantitative meaning should be assigned because both operands represent different magnitudes, are shown in Fig. 6 . In Fig. 6a, we show the results at 21h and, in Fig. 6b, at 43h after inoculation.

Fig. 6

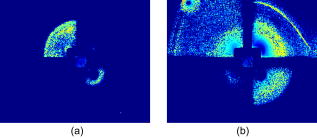

Subtraction of the biospeckle image minus white light image: (a) 21h after inoculation and (b) 43h after inoculation. Negative results are set to zero.


Dynamic speckle is produced by the beating of wavelets with Doppler-shifted frequencies. These shifts can be originated in different kinds of optical path time variations, due for example to movements, refractive index variations, configuration changes, etc. Because several of these factors are present in the behavior of bacteria with different proportions, the observed activity cannot be identified as due to only one of these causes.

In our case, the appearance of bright regions in the speckle images is an indication of bacterial motion as well as metabolic rate and Brownian motion. Because dead cells also exhibit Brownian motion, a contribution, albeit small, from dead cells to activity is to be expected. This contribution diminishes when the hardness of agar-agar is increased.

As an estimation, it is known that some protobacteria (as, for example, Escherichia coli) displace about 21μm per second.21 Therefore, the frequency deviation Δf due to Doppler effect is on the order of

Eq. 1

Δf=1λ0nv=10,633μm1.3321μms=44Hz,
where n is the refraction index and v is the bacteria velocity. This shift frequency is equivalent to a period of T=0.023s , which is about a half the integration time of the detector (40ms) , because the sampling rate is 4Hz . The wave fluctuates about 10 times during the sampling period. Only slow variations are detected by the camera.

The change in instantaneous frequency due to internal (metabolic) movements inside the cell should also be added to this value by introducing small time variations in the local refractive index n

Eq. 2

Δf=1λ0edndt,
where e is the typical thickness of the region where the refractive index is changing in time. The use of faster and more sensitive cameras could be useful to distinguish the different contributions.

On the other hand, incoherent illumination produces images where the contributions due to different cells are added on an intensity basis. The signal is then proportional to the local cell density. The cell’s state of motion is not taken into account. Note that [Fig. 4a, 4b, 4c] small (static) scratches in the support produce scattered bright signals that are formally undistinguishable from cells and that are not visible in the speckle processed images.

It can be seen that both signals represent different phenomena and could be interpreted as complementary in a certain sense. In both methods, the white-light standard technique and the dynamic laser speckle provide an image where the intensity of each pixel is proportional to the local density of bacteria. However, the main difference between them is in the ability of the second one to detect only motile bacteria clusters, while the first one does not differentiate between motile and nonmotile bacteria.

Hence, we can say that the processed full-field biospeckle images are complementary to the conventional white-light images because together both may help to the discrimination between motile and nonmotile bacteria zones. Note the difference, for example, in the lower right corner in Figs. 4 and 5. The incoherently illuminated example shows saturated regions that are not present in the speckle image. Therefore, we expect that this technique will not only be an alternative method to detect chemotaxis but also a useful tool for future microbiological research.

The processing of laser speckle frames requires simple and fast algorithms, and has a lower computational requirement as compared to OCT.9 Also, it could, by means of special equipments, be applied in situ.

In future works, we will try to extend the use of this technique to other chemotactic assays, such as agarose plug assay and drop assay.7 These assays require a fast acquisition system because the complete process takes only a few minutes.
