7 November 2019 Mapping of real-time morphological changes in the neuronal cytoskeleton with label-free wide-field second-harmonic imaging: a case study of nocodazole
Author Affiliations +
Abstract

We demonstrate the use of wide-field high-throughput second-harmonic (SH) microscopy for investigating cytoskeletal morphological changes on the single-cell level. The method allows for real-time, in vitro, label-free measurements of cytoskeletal changes that can, under certain conditions, be quantified in terms of orientational distribution or in terms of changes in the number of microtubules. As SH generation is intrinsically sensitive to noncentrosymmetrically structured microtubules, but not to isotropic or centrosymmetric materials, we use it to probe the microtubule structure in the cytoskeleton when it undergoes dynamic changes induced by the application of nocodazole, a well-known microtubule-destabilizing drug that reversibly depolymerizes microtubules. In addition, the orientational directionality of microtubules in neurites and cell bodies is determined label-free using SH polarimetry measurements. Finally, we use spatiotemporal SH imaging to show label-free, real-time nocodazole-induced morphological changes in neurons of different age and in a single axon.

1.

Introduction

Microtubules are highly dynamic polymers1 that constitute a major component of the cytoskeletal network of neuronal cells. They are versatile structures capable of polymerizing and depolymerizing2,3 and play an essential role in morphogenesis and are part of numerous cytoplasmic structures.4 Microtubules are spatially noncentrosymmetric hollow cylinders that are composed of α/β-tubulin dimmers.5,6 In microtubules, the α/β-tubulin dimer composition induces a dipole along the axial direction of the axonal microtubules’ bundles. In axons of morphologically polarized neurons, microtubules are uniformly oriented in tightly packed bundles.7 In contrast, a less uniform directional distribution is present in dendrites.8,9 To understand the complexity, growth, maintenance, and remodeling of the microtubule bundles and thus the cytoskeleton, knowledge of the regulation of microtubule dynamics is important. Commercially available drugs exist to investigate and study microtubule dynamics. In this respect, nocodazole is a valuable tool.10 Nocodazole is a microtubule-specific drug11 that causes microtubule depolymerization by binding to free tubulin dimers and preventing them from incorporating into microtubules.12 Used at appropriately high concentration, nocodazole interrupts the microtubule polymerization behavior in a reversible way:1315 after washout, microtubule polymerization occurs without affecting their initial orientation. Nocodazole is often used to probe instability and to uncover microtubule regulation mechanisms in combination with immunofluorescent methods.13 Tracking the dynamics of microtubules in vitro was first achieved in 1986 with dark-field differential interference contrast microscopy.16 In addition, techniques involving immunoelectron microscopy and fluorophore-tagged proteins have been used to visualize intrinsic and induced microtubule dynamics.1721 More recently, optogenetic modifications or cloned proteins expression in mice22 and differential interference contrast imaging methods23 have been used for the investigation of the cytoskeleton dynamics.

The necessity to tag microtubules with a label has disadvantages: the difficulty to attach the label specifically and permanently to microtubules, the photo instability induced by the use of a fluorophore, and the harsh interaction of the fluorophore on the chemical reaction of interest.24,25 In addition, genetic manipulation or differential microscopy has disadvantages from a clinical perspective or lack in component specificity.

An alternative for microtubule imaging has been recognized and demonstrated in the form of second-harmonic (SH) microscopy.2628 In a SH process, two near-infrared photons with frequency ω and field strength E(ω)j,k (with polarization states j or k) combine into one photon that has the double frequency 2ω. The optical contrast of a SH microscope is determined by the spatial organization of molecules: a centrosymmetric or isotropic arrangement of molecules does not give rise to any coherent SH emission, while a polar arrangement of molecules does emit SH photons.29 This symmetry selection rule generates a unique specificity to noncentrosymmetric structures. Since microtubules are polar, they generate SH light, whereas cytoskeletal structures, such as actin filaments, do not.26 The SH emission also strongly depends on the way and the geometry in which microtubules are organized. The intensity in polarization state k [I(2ω)i] measured in SH experiment is given by the absolute square of the second-order nonlinear polarization Pi(2)(2ω):

Eq. (1)

I(2ω)i|Pi(2)(2ω)|2andPi(2)(2ω)=ϵ0χijk(2)(2ω)Ej(ω)Ek(ω).
Here, Pi(2)(2ω) can be understood as a charge oscillation in the material that emits photons at the double frequency. The second-order susceptibility χijk(2)(2ω) is the material response and is given by the orientational average of the responses of the molecular building blocks that make up the material (microtubules); it is defined by the molecular hyperpolarizability tensor βabc(2)(2ω), where a, b, and c are the molecular symmetry axes. For the following derivation, we assume that the microtubules are in plane and that due to the wide-field illumination configuration of our imaging technique, the paraxial approximation is valid. For these conditions, the second-order susceptibility is given as

Eq. (2)

χijk(2)(2ω)=Nϵ0βabc(2)Rai(ψ,θ,ϕ)Rbj(ψ,θ,ϕ)Rck(ψ,θ,ϕ)f(ψ,θ,ϕ)ψ,θ,ϕ,
which is the orientational average of the hyperpolarizability tensor elements whereby f(ψ,θ,ϕ) is the orientational distribution function, ψ, θ, and ϕ are the Euler angles,30 and N represents the number of microtubules. Based on the cylindrical symmetry of the system, one assumes spatial isotropy around two angles (ψ,ϕ) and directionally around only one orientational angle (θ). For a nonresonant optical process (involving only virtual energy states), there are only two nonzero3134 χijk(2)(2ω) tensor elements, namely χyyy(2)(2ω) and χyxx(2)(2ω). Considering this analysis, one can measure the orientational angle of microtubules in a structure by measuring different polarization combinations. One way to obtain the tilt angle of a microtubule segment at a single pixel is to compute the ratio:3134

Eq. (3)

I(2ω)YYYI(2ω)XXX=tan2(θ).

The X and Y axis are perpendicular to the optical axis Z, and the Z axis is parallel to the second harmonic k-vector. This analysis, thus, provides a way to determine the microtubule orientation on a pixel-by-pixel basis. It does not allow determining the directionality of microtubules. In Ref. 35, such directionality information is given using a combination of SH and two-photon fluorescence from labels. Interferometric SH imaging provides such label-free information, as shown in Ref. 36. This method has, however, not yet been applied to neuroimaging. Further, it can be seen from Eqs. (1)–(3) that the SH intensity depends quadratically on the number of microtubules if these are aligned along the same axis. This quadratic dependence is referred to as spatial coherence. This means that axons that have microtubules organized unidirectionally will emit a much stronger SH intensity than structures with a bidirectional orientation of microtubules, allowing for identification of the axon by means of the intensity.37 Thus, in principle, SH imaging allows for identification of different morphological parts of the cytoskeleton, and SH polarimetry can be used to determine orientational distributions of noncentrosymmetric structures. As SH imaging requires no immunostaining, such information can be obtained label-free in living neurons in real time. Unfortunately, the relative inefficiency of the nonlinear SH generation process compared to linear fluorescence has prohibited the widespread use of scanning confocal SH imaging38 to map neuronal microtubule-based cytoskeleton and dynamic processes in real time.26,39,40

Here, we explore the use of femtosecond, wide-field, medium repetition rate SH imaging41 for dynamic neuroimaging. The method combines an increase in throughput of 3 orders of magnitude of the SH imaging process41,42 with low photodamage.43 We use the well-known effects of nocodazole on microtubules as an example of a system where spatiotemporal changes are expected. We determine the orientational distribution of microtubules and map the relative intensity of different morphological structures and perform in-vitro imaging of the effects of nocodazole on the axon of a corpus of neurons at different stages of maturity. We observe an overall depletion and recovery of the SH intensity upon nocodazole application and washout, consistent with the expected reversible nocodazole–microtubules interactions. We then demonstrate spatiotemporal dynamic SH imaging during and after nocodazole application using image acquisition times of 250 ms. The images display a nonuniform degradation and structural recovery of the axonal microtubules. Assuming that the orientational distribution within the axon is unaffected by nocodazole, we convert the SH intensity changes into a change in the number of microtubules present in the structures and show the possibility of our imaging technique to image cytoskeletal structural changes label-free.

2.

Materials and Methods

2.1.

Cell Culture

Primary cultures of cortical neurons were prepared from E17 OF1 mice embryos of either sex. Briefly, embryos were decapitated and cortices were removed under a dissecting microscope and collected in a small Petri dish in phospate-buffered saline-glucose (PBS-glucose). A single-cell suspension was obtained by gentle agitation with a fire-polished Pasteur pipette in Neurobasal Medium supplemented with B27 and GlutaMAX (Invitrogen, phenol red-free). Cells were plated at an average density of 15,000  cells/cm2 in supplemented Neurobasal Medium on polyornithine-coated glass coverslips (20-mm diameter). After 3 to 4 h, coverslips were transferred to dishes with supplemented Neurobasal Medium. Neurons were maintained at 37°C in a humidified atmosphere of 95% air/5% CO2 and were used between 2 and 22 days in vitro (DIV).

2.2.

Nocodazole Treatment

Nocodazole was purchased from Sigma Aldrich (Buchs, Switzerland). A stock solution diluted in dimethyl sulfoxide (DMSO) was prepared with a concentration of 5  mg/ml and then diluted in tissue culture medium at a ratio of 1:500 for a final concentration of 10  μg/ml. The tissue culture medium was prepared fresh prior to the experiment and contained the following concentrations (in millimolar) 140 NaCl, 3 KCl, 3 CaCl2·2H2O, 2 MgCl2·6H2O, 5 mM glucose, and 10 mM Hepes (solution denoted as HEPES solution in this work). All chemicals were purchased from Sigma Aldrich. Nocodazole containing medium and the drug-free tissue culture medium were warmed to 37°C before using it at room temperature. Recordings of SH movies started a few seconds after the drug-containing medium was injected in the neurons-containing chamber and were also performed at room temperature. After 2 to 10 min, the drug-containing solution was removed from the sample chamber by pipetting and replaced with a drug-free tissue culture medium. This tissue culture medium was replaced three times following the same procedure by pipetting and reinjection of medium to remove any nocodazole residue during the recovering period. The recording of the recovery experiment started after the third rinse and lasted for 10 to 20 min depending on the experiment.

2.3.

Second-Harmonic Imaging System

The imaging system is sketched in Fig. 1(a) and is described in detail in Ref. 41. It is composed of a light source, a Yb:KGW amplified laser (Pharos Light Conversion) that delivers 200 kHz, 1036 nm, 168 fs laser pulses. The pulse energy delivered to the sample is 36  μJ and shaped into a elliptical illumination spot size with an FWHM of 150  μm in the sample plane, reaching a fluence of 2.15  mJ/cm2 and a peak intensity of 12.79  GW/cm2. To reach this type of focus, the laser beam illuminates a spatial light modulator (SLM, Phase Only Microdisplay 650 to 1100 nm, with a fill factor of 93%, 1920×1080  pixels, and a 8-μm pixel pitch from HOLOEYE Photonics) under normal incidence. The SLM is used as a reflective diffraction grating and generates a grayscale hologram image of a rotatable slit pattern. The pattern is filtered in the Fourier plane of a lens (f=20  cm, Thorlabs) placed after the SLM, such that only the 1st and 1st orders are retained. These two beams hit the back focal plane of a top objective [Olympus LUMPLFLN 60x1.0 numerical aperture (NA) water immersion objective] and are then imaged onto the sample plane such that the sample is illuminated with two wide-field plane waves. The opening angle between these beams is tunable by varying the grating spacing period on the SLM. The polarization of the two incoming beams is controlled by a zero-order half-waveplate (HWP) (Thorlabs, WPH05M-1030). The generated SH light was collected in the forward transmission direction using a high NA Olympus, LUMFLN 60x1.1 NA objective and analyzed with an analyzer placed in the collection path after a 515-nm bandpass filter (Omega Optical, 10-nm bandwidth). The SH imaging was performed with a gated detection on a back-illuminated electron-multiplying intensified charge-couple device (Bf GEN III, EM-ICCD, PiMax4, Princeton Instruments) with a 512×512  pixels chip. SH images were acquired with an acquisition time of 0.25 s each, with the electron multiplier gain set to 4000 and an accumulation parameter of 50,000 on the camera chip. The microscope also integrates a path for phase contrast (PC) imaging with white light.

Fig. 1

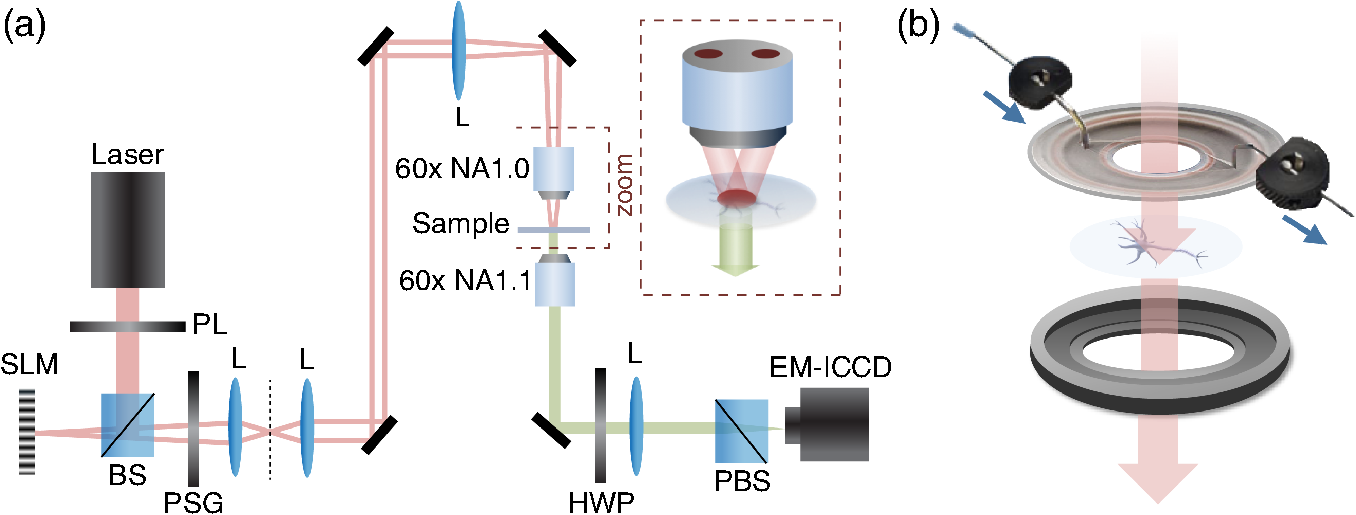

Imaging configuration. (a) Schematic representation of the SH microscope, with optical components: SLM, polarizer (PL), beam splitter (BS), polarization state generator (PSG), achromatic lens (L), dichroic beam splitter (DB), NA, HWP, and polarizing BS (PBS). (b) Layout of the sample holder, with bottomed culture coverslips inserted in a low-profile, open bath chamber from Warner Instruments (Series 40 Quick Change Imaging Chambers RC-40LP).


2.4.

SH Imaging Experiments

Coverslips with plated neurons were inserted in a Quick Change Imaging Chamber from Warner Instruments (Series 40 RC-41LP). As sketched in Fig. 1(b), the bottom of the imaging chamber is formed by the glass coverslip with the plated neurons, on top of which a polycarbonate ring was gently placed. This imaging chamber contains a maximum of 3 mL of liquid and allows a rapid exchange of liquid, a short working distance, and an open bath. A constant flow of extracellular solution with 140 mM NaCl, 3 mM KCl, 3 mM CaCl2·2H2O, 2 mM MgCl2·6H2O, 5 mM glucose, and 10 mM Hepes was used at a flow rate of 1  mL/mn associated with a suction speed of 1.2  mL/mn to provide the neurons with fresh solution and a laminar flow in the chamber. Prior to each imaging experiments, all neurons were checked for viability according to the protocol described in the supplementary information.

3.

Results and Discussion

3.1.

Orientational Distribution of Microtubules

Figure 2(a) shows a PC image of a cultured neuron at DIV13. The cell body and two neurites that are labeled 1 and 2 are visible in the image. Figure 2(b) shows the SH image recorded with two orthogonal polarization combinations (color coded with green for YYY and red for XXX polarized beams). The inset in Fig. 2(c) shows the application of Eq. (3) on the obtained data in Fig. 2(b). Neurite 1 is oriented mainly along the X direction (90 deg), and neurite 2 is mainly oriented along the Y direction, indicated by the arrows. Figure 2(c) shows the angular distribution for neurites 1 and 2 extracted from Eq. (3), using the arrows in Fig. 2(b) as reference (0 deg). Neurite 1 displays a narrow angular distribution of microtubule segments, while neurite 2 has a broad orientational distribution that is not directed along the growth direction. Both distributions can be fitted with Gaussians [Fig. 2(c)] that have standard deviations of 0.76 deg (neurite 1) and 4.3 deg (neurite 2), respectively. The inset of Fig. 2(c) shows a color map with the computed orientational angles per pixel, with the Y direction set to 0 deg and the X direction set to 90 deg.

Fig. 2

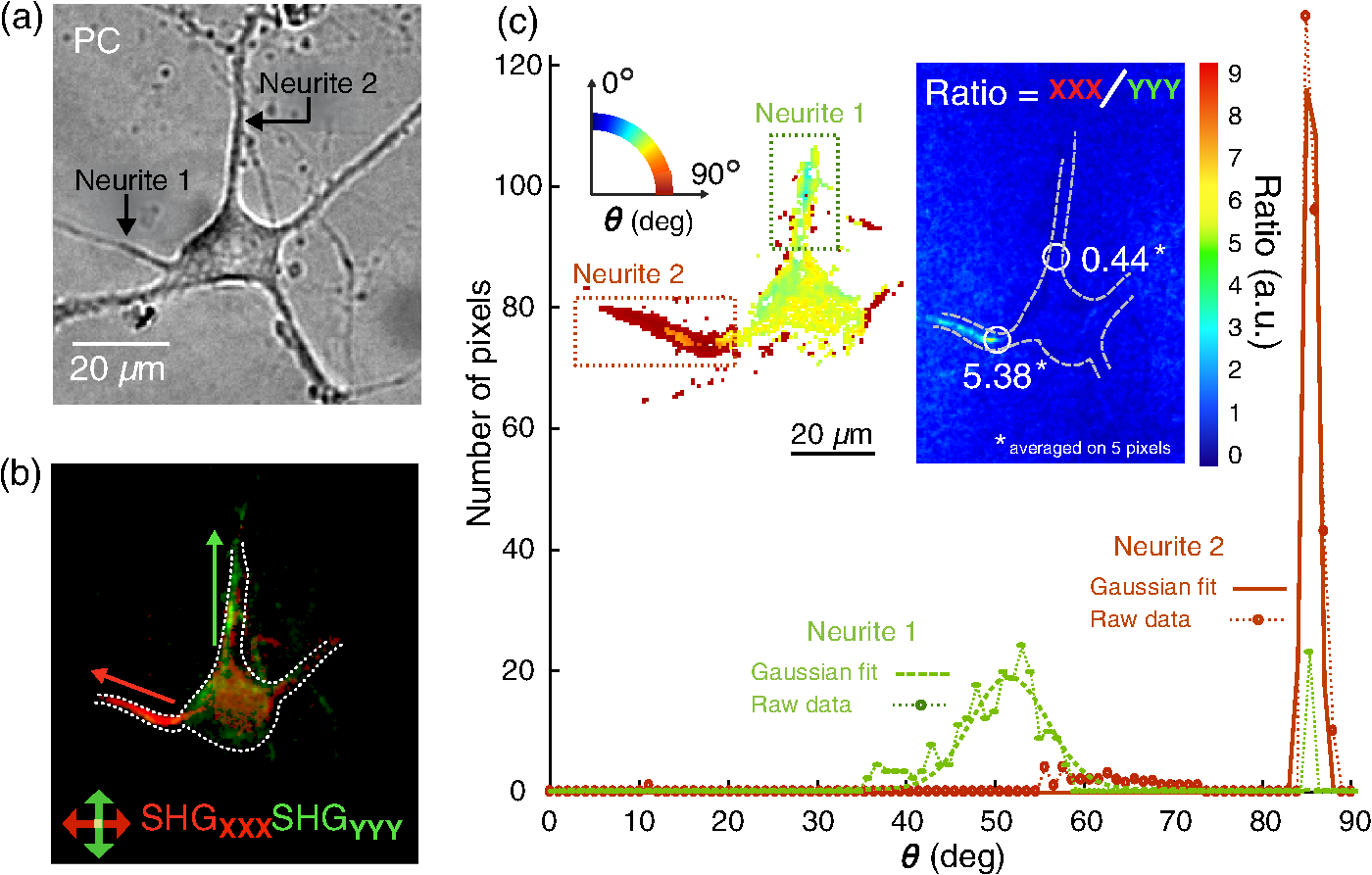

The orientational distribution of microtubules from SH polarimetry. (a) PC image of a neuron DIV13. The neuron consists of a cell body and two neurites. (b) SH images recorded in XXX (red) and YYY (green) polarization combinations. The purely imaging acquisition time of this image was 18 s for each polarization without considering the total time, including the manual manipulation of the waveplate. (c) The orientational distribution of the neurites is plotted relative to the main axis of the neurite with their respective Gaussian fits. The inset shows a color plot indicating the pixel-wise relative tilt angle in degrees obtained from applying Eq. (3) to the data in (b).


Of all the microtubule-containing structures within the cell, the axon is the only one that presents a unidirectional organized array of microtubules, oriented along the growth direction and arranged in parallel ordered bundles.37,4446 Based on the above analysis, we can thus conclude that the structure that has a high SH intensity in combination with a narrow orientational distribution that is directed parallel to the growth direction is the axon (neurite 1), while the other one is a dendrite (neurite 2).

3.2.

Second-Harmonic Imaging of Microtubule Morphology in Single Neurons

Next, we measure the influence of nocodazole on the SH intensity. Figure 3(a) shows a composite image obtained with PC and SH modalities showing two morphologically polarized neurons at DIV7. At this stage of maturity, neurons have one long and thin process, the axon, and several shorter tapered processes.47,48 This neuronal morphology is observed in the PC image in Fig. 3(a). The SH signal, in red in Fig. 3(a), was obtained with the two incoming beams polarized along the vertical direction (YYY, indicated by the red double-headed arrow). It can be seen that one of the structures in Fig. 3(a) generates a brighter SH signal (indicated by the white arrow), while other structures, such as the cell bodies (indicated by the white arrowheads) emit a much fainter SH intensity. This difference in intensity already indicates that the brighter structure is likely the axon. For the axon, an excitation parallel to the microtubule molecular dipole axis leads to a strong SH emission, while excitation perpendicular to this axial direction should result in no SH contrast. Changing the polarization combination of the incoming and outgoing beams, we only observe an intense SH emission from the structure highlighted by the white arrow. Thus, the elongated structure in Fig. 3(a) most likely corresponds to the axon.

Fig. 3

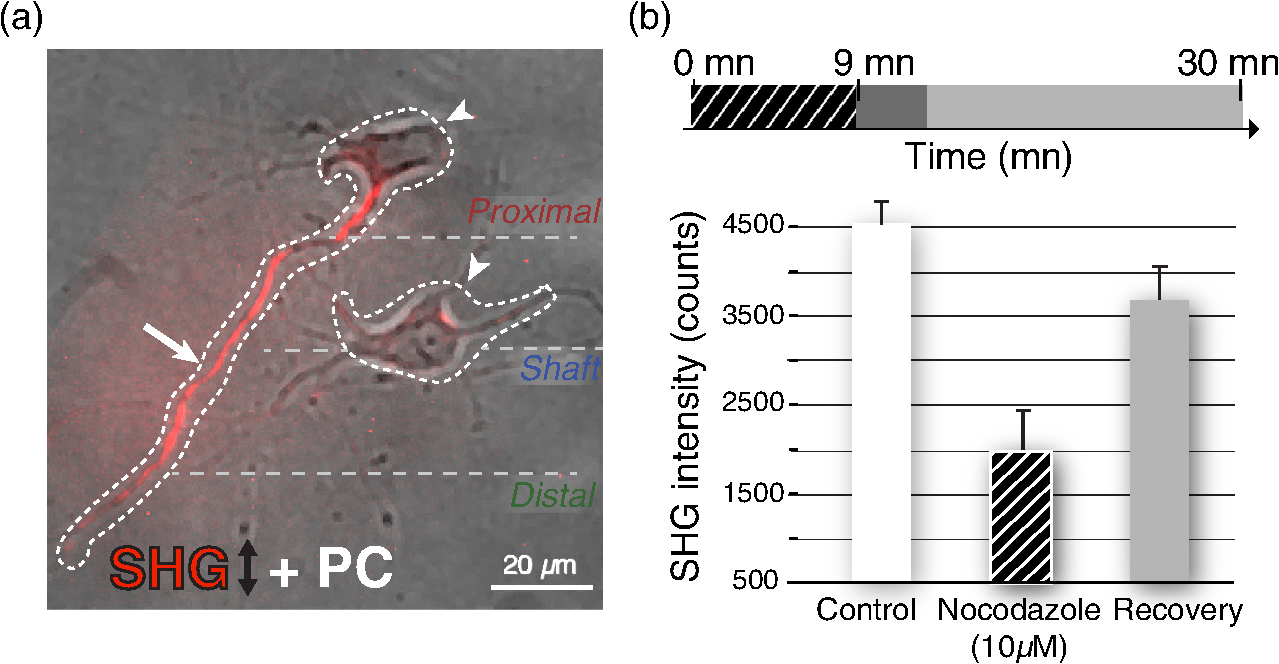

Effect of nocodazole on the SH response from microtubules, during application and after washout. (a) Composite of the nonpolarized white-light PC and SH (red color) image of two neurons at stage 3 of their development. The polarization combination used for the SH image is indicated by the red double-headed arrow. Arrowheads: cell bodies, arrow: axon. The axon is divided into three parts, proximal, shaft, and distal, which will be used for the spatiotemporal SH imaging using the same neuron in Fig. 5. (b) Top panel: time lapse protocol of the nocodazole application in the washout and recovery experiment. Nocodazole (10  μM) was added to the open bath chamber containing the plated neurons (striped shading); 9 min later the drug-containing solute was removed and the culture was washed three times with drug-free culture medium (dark gray shading). Recovery lasts 20 min after the washout (light gray shading). Bottom panel: histograms of the overall SH intensity from the dashed lines in (a) averaged for 3 s during the control (no drug added), directly after injection of nocodazole and after a recovery period of 20 min.


Nocodazole depolymerizes microtubules and should therefore affect the SH intensity, in accordance with previous studies26 that showed that SH depletion and recovery follows the application of the depolymerizing drug nocodazole. To investigate the effects of nocodazole on the SH intensity, we applied a 10-μM nocodazole solution in the chamber for 9 min and subsequently washed it out. SH images were recorded continuously with 0.25 s per frame. The histograms in Fig. 3(b) show the 2.5-s-averaged SH intensity in counts coming from the neurons marked by the dashed masks in Fig. 3(a) before and after the application of nocodazole and at the end of the recovery time. It can be seen that after 9 min of drug exposure, the SH intensity arising from the two cells decreases to 60% of its original value. After 20 min following the washout, the SH intensity has recovered back to 80% of its original value, in agreement with previous studies.26,37 As the wide-field SH imaging system can be employed to record 0.25-s integration time images, without damaging the cells,43 in what follows we demonstrate two possible applications of SH imaging: to probe morphological drug-induced changes in neurons of different age and to dynamically image spatiotemporal changes in real time.

3.3.

Mapping Changes in the Microtubule Morphology as a Function of Maturity

Figure 4(a) shows PC and SH images of neurons at three different stages of maturity: DIV7, DIV11, and DIV23. For each neuron, the displayed SH intensity is averaged over 10 s. Figure 4(b) shows the decrease in signal after application of nocodazole where the first 10 s were taken as a reference (before nocodazole application). Figure 4(b) shows that newly polarized neurons (DIV7) show a strong response to nocodazole, with an SH depletion of 15% after 1 min and a decrease down to 25% of the original value after 9 min. Mature polarized neurons (DIV11) display a slow decrease over a long time, starting from 2.7% after 1 min with an SH intensity depletion of 8% of its original value after 9 min of exposure. For advanced mature neurons (DIV23), the SH signal is not changing detectably. This difference in nocodazole sensitivity with age is consistent with a dynamical microtubule cytoskeleton, where at the early stages more and shorter microtubules are present that have many sites to initiate depolymerization. As neurons mature, microtubules are more inclined to collect post-translational modifications, resulting in an increase of stability.49,50 Thus, the microtubules of the cytoskeleton of older neurons have a better resistance to nocodazole. Since wide-field SH imaging allows for time lapse imaging over long time intervals, one could potentially use this method to follow the same neuron over extended periods of time in future experiments.

Fig. 4

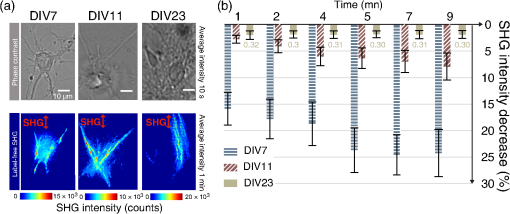

Nocodazole-induced SH intensity depletion from the cytoskeleton of neurons at different stages of maturity. (a) Top panels: PC images of cultured neurons at different stage of maturity. Bottom panels: respective label-free SH images averaged over 10 s during the control conditions. (b) Histograms of SH intensity decreases (in percentage) as a function of the time of exposure to a 10-μg/ml solution of nocodazole.


3.4.

In Vitro Second-Harmonic Imaging of Multisite Time-Resolved Microtubule Morphology Changes

In another application, we demonstrate the possibility of dynamic SH imaging to obtain spatiotemporal stability information about the axonal microtubule network. We image the microtubule network of a single axon from a newly polarized neuron [DIV7, the cell depicted in Figure 3(a)] treated with nocodazole and after washout. We examine the SH intensity variations in the 0.25-s acquisition time SH images and process the intensity variations that occur along three different regions of the neuron in Fig. 3(a) and represented in the schematic of Fig. 5(a): the proximal region closest to the cell body [region of interest (ROI) 1], a middle shaft part (ROI 2, >50  μm from the cell body), and a distal shaft part (ROI 3, >100  μm from the cell body). Figure 5(b) shows the decay of the averaged SH intensity as a function of time during nocodazole application for the three ROIs. Single exponential decays are used to fit the data. These fits show that during nocodazole exposure, an exponential depletion in the SH intensity is observed as a function of time, with different decay times for three ROIs along the axon: the averaged SH intensity from the proximal region decreases with a half-time of 2 min 30  s±35  s (R2=0.93), whereas the half-times of the middle and distal axonal shafts are slower, 2 min 48  s±25  s (R2=0.98) and 3 min 47  s±76  s (R2=0.95), respectively. We observe that the half-time values of the SH intensity depletion during nocodazole treatment increase with respect to the distance from the cell body. These observations are in agreement with literature51 although the optical contrast mechanism is dissimilar; the similarity in decay times during nocodazole exposure suggests that both methods report on the decrease in the density of axonal microtubules.

Fig. 5

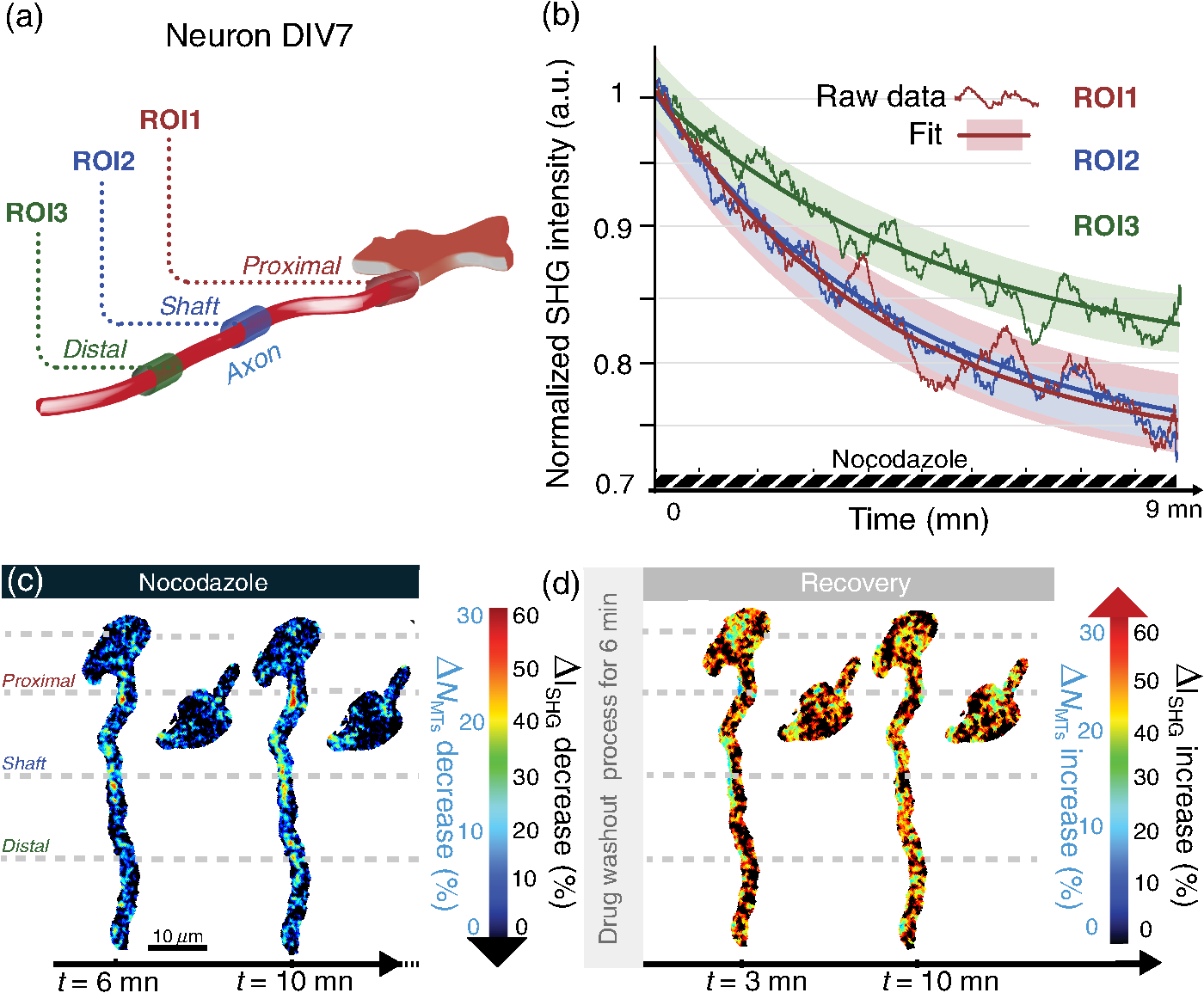

Spatiotemporal SH imaging of microtubule stability. (a) Schematic view of an axon with three different ROIs. (b) Normalized nocodazole-induced SH intensity depletion for the three different ROIs indicated in (a). The colored intensity traces represent the filtered raw data, obtained with a seventh-order median filter, the smoothed darker color traces represent intensity traces that were filtered with a 100th-order median filter and a low pass moving-average filter with a span of 5. (c) Spatiotemporal maps of percentage of decrease in SH (ΔISHG) and microtubule density (ΔNMTs). The control signal is taken at t=0  min when the drug is injected into the bath (average of 10 frames with 0.25  s/frame). The decrease in the SH intensity and microtubules density is mapped as a function of time during the 10 min of nocodazole treatment (10  μg/mL) and after 20 min of recovery following the washout. The gray dashed lines correspond to different morphological areas along the axon: proximal, shaft (middle shaft of the axon), and distal (distal axonal shaft). In the proximal region of the axon, we observed a gradual loss of SH intensity spreading toward the distal part of the axon. During the recovery, the middle axonal shaft shows a spread damaged area of SH loss recovering toward the proximal part in discrete local points.


In addition to analyzing the spatially averaged decay of the SH intensity in three distinct ROIs, we make a pixel-wise comparison and map the reduction and the recovery of SH intensity per pixel as a function of time for the whole neurons [Figs. 5(c)5(d)] and look at the SH intensity variations in the axon. The directional polarity of microtubules in the axon is uniform,7 (PMT=1), as is confirmed in Fig. 2(c) that showed the very narrow orientational distribution in neurite 1. This specific uniform polarity allows us to relate the SH intensity to the number of uniformly oriented microtubules35 with ISHG(NMT×PMT)2. Applying Eqs. (1)–(3) with the assumption that nocodazole does not alter the orientational distribution of the microtubules, we can relate the relative SH intensity to the relative change in the number of microtubules during and after nocodazole application:

Eq. (4)

NMTs(t)NMTs,0=ISH(t)ISH,0,
where ISH,0 denotes the initially measured SH intensity of the axon and NMT,0 denotes the corresponding initial number of microtubules at t=0 before adding nocodazole. Since Baas has shown in Ref. 52 that after nocodazole treatment the microtubule polarity is for 96% identical to the pretreated neuron, we think the above assumption is reasonable. With this approach, it is possible to map on a pixel-size scale the spatiotemporal fluctuations of SH intensity and the corresponding variation in the number of microtubules. Figure 5(c) shows a map of the percentage of decrease in SH intensity (black scale, ΔI(t)=[ISH,0ISH(t)]×100/ISH,0) and corresponding relative change in the number of microtubules (blue scale, ΔNMTs(t)=[ISH,0ISH(t)]×100/ISH,0) during nocodazole exposure. Figure 5(d) shows the relative SH intensity increase and converted increase in the relative number of microtubules during recovery. It can be seen that 6 min after the nocodazole application, there are isolated sites 1  μm in size that have a 30% reduction in the number of axonal microtubules. These sites occur more frequently closer to the cell body. In the proximal part, there is also a 3-μm-size core with a similar microtubule density decrease. After 9 min, these discrete sites of damage connect and expand toward the distal part of the axonal shaft. During the recovery, the damaged cores are restored, whereby the distal part appears to heal the quickest.

Thus, the above data demonstrate the possibility of imaging spatiotemporal changes in vitro during and after the application of the microtubule-destabilizing drug nocodazole. Since the presented data set is very limited (N=7), it is impossible to draw conclusions about the mechanistic effect of nocodazole. Future more extensive studies could map the degradation more clearly as well as conduct intermediate real-time polarimetric measurements to determine how and where the microtubule network undergoes structural changes. A combination with SH interferometry36 could add information on microtubule directionality. Combined SH and fluorescence or electron microscopy studies are also potentially powerful tools to increase our knowledge of the complex microtubule network within neurons and other cells.

4.

Conclusions

Wide-field, high-throughput SH microscopy was applied to study living mammalian neurons with the aim of demonstrating the possibility to extract the orientational distribution of microtubules as well as obtaining dynamic label-free spatiotemporal stability (referred as resistance to the drug nocodazole) information in vitro. We used nocodazole, a microtubule-destabilizing drug, as it is a well-known reversible microtubule-specific depolymerizing drug. We first introduced the principal physical relations needed to understand SH imaging. We performed SH polarimetry measurements to demonstrate how the pixel-wise orientational directionality of microtubules in neurites and cell bodies can be determined. When the microtubules are oriented along the principle axis of the neurite with a narrow orientational distribution (rather than having a broad orientational distribution that is not aligned with the principle axis of the neurite) and when the locally emitted SH intensity is significantly higher than in other parts, we can assign a structure as the axon. We also showed the possibility of extracting information about the stability of the cytoskeleton against nocodazole-induced depolymerization as a function of the neurons age in vitro with SH imaging. We then performed spatiotemporal SH imaging during and after the application of nocodazole and focused our observations on a single axon of a morphologically polarized cultured neuron. Assuming that nocodazole does not affect the orientational distribution of microtubules, direct statements can be made to relate the variations in the SH intensity with the changes in microtubules density.

These measurements show the possibility of real-time in vitro imaging of changes in the density of the axonal microtubules. In combination with other techniques, our quantitative understanding of microtubule cytoskeletal dynamics could be enhanced considerably, especially since the presented approach is noninvasive and can be performed in real-time and label-free. This work constitutes a state-of-the-art example of the imaging and quantitative possibilities our wide-field, label-free, SH technique offers. Future investigations could lead to further applications such as the investigation of neurodegenerative diseases or spatiotemporal dynamics studies of mitosis.

Disclosures

No conflicts of interest, financial or otherwise, are declared by the authors.

Acknowledgments

The authors would like to thank E. Ruchti, E. Gasparetto, and M. Wirth for providing the neuronal cultures, and I. Allaman and L. Kapitein for discussions. This work was supported by the Julia Jacobi Foundation, the Swiss National Foundation (Grant No. 200021_146884), and the European Commission Research Executive Agency Marie Curie Actions “FINON” (Grant No. ITN-2013-607842).

References

1.

T. Mitchison and M. Kirschner, “Dynamic instability of microtubule growth,” Nature, 312 237 –242 (1984). https://doi.org/10.1038/312237a0 Google Scholar

2.

R. L. Margolis and L. Wilson, “Opposite end assembly and disassembly of microtubules at steady state in vitro,” Cell, 13 1 –8 (1978). https://doi.org/10.1016/0092-8674(78)90132-0 CELLB5 0092-8674 Google Scholar

3.

E. D. Salmon, M. McKeel and T. Hays, “Rapid rate of tubulin dissociation from microtubules in the mitotic spindle in vivo measured by blocking polymerization with colchicine,” J. Cell Biol., 99 1066 –1075 (1984). https://doi.org/10.1083/jcb.99.3.1066 JCLBA3 0021-9525 Google Scholar

4.

P. W. Baas, “Microtubules and neuronal polarity: lessons from mitosis,” Neuron, 22 23 –31 (1999). https://doi.org/10.1016/S0896-6273(00)80675-3 NERNET 0896-6273 Google Scholar

5.

J. M. Gibbs-Davis et al., “Jammed acid–base reactions at interfaces,” J. Am. Chem. Soc., 130 15444 –15447 (2008). https://doi.org/10.1021/ja804302s JACSAT 0002-7863 Google Scholar

6.

P. Janmey, Handbook of Biological Physics, 1 805 –849 Elsevier, North Holland (1995). Google Scholar

7.

J. W. Mandell and G. A. Banker, “The microtubule cytoskeleton and the development of neuronal polarity,” Neurobiol. Aging, 16 229 –237 (1995). https://doi.org/10.1016/0197-4580(94)00164-V NEAGDO 0197-4580 Google Scholar

8.

T. Yamaguchi, K. Nishizaki and S. Itai, “Molecular interactions between phospholipids and electrolytes in a monolayer of parenteral lipid emulsion,” Colloids Surf. B Biointerfaces, 9 275 –282 (1997). https://doi.org/10.1016/S0927-7765(97)00033-7 Google Scholar

9.

K. W. Yau et al., “Dendrites in vitro and in vivo contain microtubules of opposite polarity and axon formation correlates with uniform plus-end-out microtubule orientation,” J. Neurosci., 36 1071 –1085 (2016). https://doi.org/10.1523/JNEUROSCI.2430-15.2016 JNRSDS 0270-6474 Google Scholar

10.

J. D. Wilson et al., “Light scattering from intact cells reports oxidative-stress-induced mitochondrial swelling,” Biophys. J., 88 2929 –2938 (2005). https://doi.org/10.1529/biophysj.104.054528 BIOJAU 0006-3495 Google Scholar

11.

S. H. Brawley and R. S. Quatrano, “Effects of microtubule inhibitors on pronuclear migration and embryogenesis in Fucus distichus (phaeophyta),” J. Phycol., 15 266 –272 (1979). https://doi.org/10.1111/jpy.1979.15.issue-s1 JPYLAJ 0022-3646 Google Scholar

12.

J. Hoebeke, G. Van Nijen and M. De Brabander, “Interaction of oncodazole (R 17934), a new anti-tumoral drug, with rat brain tubulin,” Biochem. Biophys. Res. Commun., 69 319 –324 (1976). https://doi.org/10.1016/0006-291X(76)90524-6 BBRCA9 0006-291X Google Scholar

13.

H. Witte, D. Neukirchen and F. Bradke, “Microtubule stabilization specifies initial neuronal polarization,” J. Cell Biol., 180 619 –632 (2008). https://doi.org/10.1083/jcb.200707042 JCLBA3 0021-9525 Google Scholar

14.

L. Wilson and M. A. Jordan, “Microtubule dynamics: taking aim at a moving target,” Chem. Biol., 2 569 –573 (1995). https://doi.org/10.1016/1074-5521(95)90119-1 CBOLE2 1074-5521 Google Scholar

15.

J. C. Lee, D. J. Field and L. L. Lee, “Effects of nocodazole on structures of calf brain tubulin,” Biochemistry, 19 6209 –6215 (1980). https://doi.org/10.1021/bi00567a041 Google Scholar

16.

T. Horio and H. Hirokazu, “Visualization of the dynamic instability of individual microtubules by dark-field microscopy,” Nature, 319 402 –405 (1986). https://doi.org/10.1038/319402a0 Google Scholar

17.

T. Haraguchi, T. Kaneda and Y. Hiraoka, “Dynamics of chromosomes and microtubules visualized by multiple-wavelength fluorescence imaging in living mammalian cells: effects of mitotic inhibitors on cell cycle progression,” Genes Cells, 2 369 –380 (1997). https://doi.org/10.1046/j.1365-2443.1997.1280326.x GECEFL 1356-9597 Google Scholar

18.

P. M. Bayley, M. J. Schilstra and S. R. Martin, “Microtubule dynamic instability: numerical simulation of microtubule transition properties using a lateral cap model,” J. Cell Sci., 95 33 –48 (1990). JNCSAI 0021-9533 Google Scholar

19.

P. J. Sammak and G. G. Borisy, “Direct observation of microtubule dynamics in living cells,” Nature, 332 724 –726 (1988). https://doi.org/10.1038/332724a0 Google Scholar

20.

T. Stepanova et al., “History-dependent catastrophes regulate axonal microtubule behavior,” Curr. Biol., 20 1023 –1028 (2010). https://doi.org/10.1016/j.cub.2010.04.024 CUBLE2 0960-9822 Google Scholar

21.

D. R. Webster et al., “Differential turnover of tyrosinated and detyrosinated microtubules,” Proc. Natl. Acad. Sci. U. S. A., 84 9040 –9044 (1987). https://doi.org/10.1073/pnas.84.24.9040 Google Scholar

22.

N. M. Rusan et al., “Cell cycle-dependent changes in microtubule dynamics in living cells expressing green fluorescent protein-alpha tubulin,” Mol. Biol. Cell, 12 971 –980 (2001). https://doi.org/10.1091/mbc.12.4.971 MBCEEV 1059-1524 Google Scholar

23.

P. Bon et al., “Fast label-free cytoskeletal network imaging in living mammalian cells,” Biophys. J., 106 1588 –1595 (2014). https://doi.org/10.1016/j.bpj.2014.02.023 BIOJAU 0006-3495 Google Scholar

24.

U. Marklund et al., “Oncoprotein 18 is a phosphorylation-responsive regulator of microtubule dynamics,” EMBO J., 15 5290 –5298 (1996). https://doi.org/10.1002/embj.1996.15.issue-19 EMJODG 0261-4189 Google Scholar

25.

C. Macias-Romero and P. Török, “Eigenvalue calibration methods for polarimetry,” J. Eur. Opt. Soc., 7 1990 –2573 (2012). https://doi.org/10.2971/jeos.2012.12004 1990-2573 Google Scholar

26.

D. A. Dombeck et al., “Uniform polarity microtubule assemblies imaged in native brain tissue by second-harmonic generation microscopy,” Proc. Natl. Acad. Sci. U. S. A., 100 7081 –7086 (2003). https://doi.org/10.1073/pnas.0731953100 Google Scholar

27.

B. F. Levine and C. G. Bethea, “Second and third order hyperpolarizabilities of organic molecules,” J. Chem. Phys., 63 2666 –2682 (1975). https://doi.org/10.1063/1.431660 JCPSA6 0021-9606 Google Scholar

28.

W. H. Stoothoff, B. J. Bacskai and B. T. Hyman, “Monitoring tau-tubulin interactions utilizing second harmonic generation in living neurons,” J. Biomed. Opt., 13 064039 (2008). https://doi.org/10.1117/1.3050422 Google Scholar

29.

W. R. Boyd, (1992). Google Scholar

30.

H. Goldstein, C. P. Poole and J. L. Safko, Classical Mechanics, 3rd ed.Pearson, Harlow (2001). Google Scholar

31.

D. Sharoukhov and H. Lim, “On probing conformation of microtubules by second-harmonic generation,” J. Mod. Opt., 63 71 –75 (2016). https://doi.org/10.1080/09500340.2015.1080866 JMOPEW 0950-0340 Google Scholar

32.

A. E. Tuer et al., “Hierarchical model of fibrillar collagen organization for interpreting the second-order susceptibility tensors in biological tissue,” Biophys. J., 103 2093 –2105 (2012). https://doi.org/10.1016/j.bpj.2012.10.019 BIOJAU 0006-3495 Google Scholar

33.

S. Psilodimitrakopoulos et al., “Estimation of the effective orientation of the SHG source in primary cortical neurons,” Opt. Express, 17 14418 –14425 (2009). https://doi.org/10.1364/OE.17.014418 OPEXFF 1094-4087 Google Scholar

34.

C. Odin et al., “Second harmonic microscopy of axonemes,” Opt. Express, 17 9235 –9240 (2009). https://doi.org/10.1364/OE.17.009235 OPEXFF 1094-4087 Google Scholar

35.

C.-H. Yu et al., “Measuring microtubule polarity in spindles with second-harmonic generation,” Biophys. J., 106 1578 –1587 (2014). https://doi.org/10.1016/j.bpj.2014.03.009 BIOJAU 0006-3495 Google Scholar

36.

S. Bancelin et al., “Probing microtubules polarity in mitotic spindles in situ using interferometric second harmonic generation microscopy,” Sci. Rep., 7 1 –8 (2017). https://doi.org/10.1038/s41598-017-06648-4 SRCEC3 2045-2322 Google Scholar

37.

A. C. Kwan, D. A. Dombeck and W. W. Webb, “Polarized microtubule arrays in apical dendrites and axons,” Proc. Natl. Acad. Sci. U. S. A., 105 11370 –11375 (2008). https://doi.org/10.1073/pnas.0805199105 Google Scholar

38.

W. Denk, J. H. Strickler and W. W. Webb, “Two-photon laser scanning fluorescence microscopy,” Science, 248 73 –76 (1990). https://doi.org/10.1126/science.2321027 SCIEAS 0036-8075 Google Scholar

39.

P. J. Campagnola et al., “High-resolution nonlinear optical imaging of live cells by second harmonic generation,” Biophys. J., 77 3341 –3349 (1999). https://doi.org/10.1016/S0006-3495(99)77165-1 BIOJAU 0006-3495 Google Scholar

40.

X. Chen et al., “Second harmonic generation microscopy for quantitative analysis of collagen fibrillar structure,” Nat. Protoc., 7 654 –669 (2012). https://doi.org/10.1038/nprot.2012.009 1754-2189 Google Scholar

41.

C. Macias-Romero et al., “Optical imaging of surface chemistry and dynamics in confinement,” Science, 357 784 –788 (2017). https://doi.org/10.1126/science.aal4346 SCIEAS 0036-8075 Google Scholar

42.

C. Macias-Romero et al., “High throughput second harmonic imaging for label-free biological applications,” Opt. Express, 22 31102 –31112 (2014). https://doi.org/10.1364/OE.22.031102 OPEXFF 1094-4087 Google Scholar

43.

C. Macias-Romero et al., “Wide-field medium-repetition-rate multiphoton microscopy reduces photodamage of living cells,” Biomed. Opt. Express, 7 1458 –1467 (2016). https://doi.org/10.1364/BOE.7.001458 BOEICL 2156-7085 Google Scholar

44.

K. Kollins et al., “Dendrites differ from axons in patterns of microtubule stability and polymerization during development,” Neural Dev., 4 26 (2009). https://doi.org/10.1186/1749-8104-4-26 Google Scholar

45.

C. Conde and A. Cáceres, “Microtubule assembly, organization and dynamics in axons and dendrites,” Nat. Rev. Neurosci., 10 319 –332 (2009). https://doi.org/10.1038/nrn2631 NRNAAN 1471-003X Google Scholar

46.

P. W. Baas and S. Lin, “Hooks and comets: the story of microtubule polarity orientation in the neuron,” Dev. Neurobiol., 71 403 –418 (2011). https://doi.org/10.1002/dneu.v71.6 Google Scholar

47.

E. Kandel, J. Schwartz and T. Jessell, Principles of Neural Science, McGraw-Hill Medical, New York (2013). Google Scholar

48.

A. M. Craig and G. Branker, “Neuronal polarity,” Cold Spring Harb. Perspect. Biol., 1 a001644 (1994). https://doi.org/10.1101/cshperspect.a001644 1943-0264 Google Scholar

49.

J. Bulinski and G. Gundersen, “Stabilization of post-translational modification of microtubules during cellular morphogenesis,” BioEssays News Rev. Mol., 13 285 –293 (1991). https://doi.org/10.1002/bies.950130605 Google Scholar

50.

G. Piperno, M. LeDizet and X. J. Chang, “Microtubules containing acetylated alpha-tubulin in mammalian cells in culture,” J. Cell Biol., 104 289 –302 (1987). https://doi.org/10.1083/jcb.104.2.289 JCLBA3 0021-9525 Google Scholar

51.

M. Kempf et al., “Tau binds to the distal axon early in development of polarity in a microtubule- and microfilament-dependent manner,” J. Neurosci., 16 5583 –5592 (1996). https://doi.org/10.1523/JNEUROSCI.16-18-05583.1996 JNRSDS 0270-6474 Google Scholar

52.

P. W. Baas, M. M. Black and G. A. Banker, “Changes in microtubule polarity orientation during the development of hippocampal neurons in culture,” J. Cell Biol., 109 3085 –3094 (1989). https://doi.org/10.1083/jcb.109.6.3085 JCLBA3 0021-9525 Google Scholar
